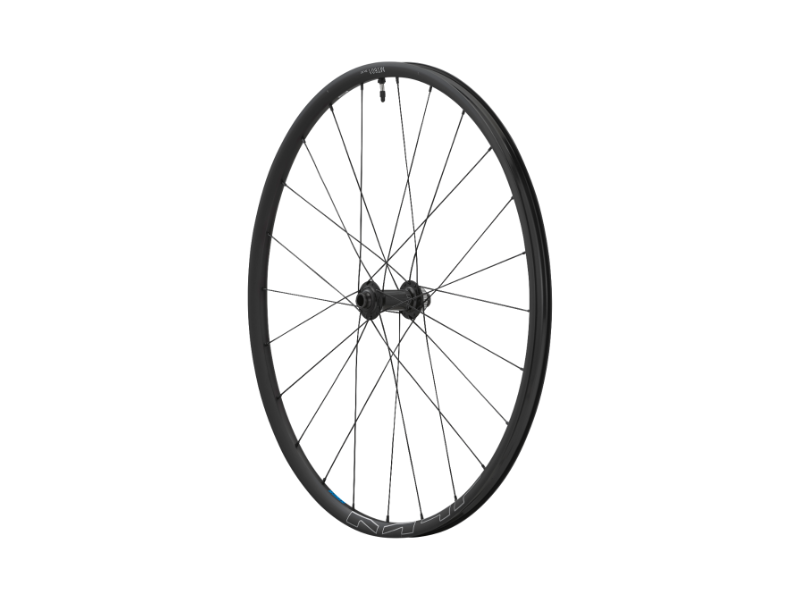

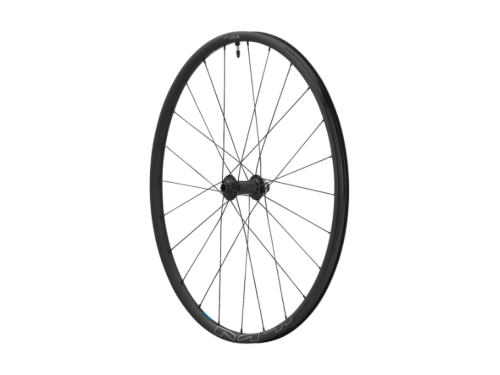

Shimano Deore WH-MT601 is a durable, budget-friendly aluminum mountain bike wheelset designed for cross-country and trail riding. Positioned at the Deore level, it balances robust performance with modern standards like tubeless compatibility and 12-speed Micro Spline integration.
Material: Painted aluminum with a sleeved joint.
Internal Width: 25 mm.
External Width: 28.8 mm to 29.7 mm (varies by model).
Rim Depth/Height: 20.8 mm to 21 mm.
Tire Compatibility: Designed for 2.0" to 2.4" width tires (clincher or tubeless).
Valve Hole: Presta/SV (6.5 mm).
Hub & Drivetrain
Freehub Body: Steel Micro Spline, exclusively for Shimano 12-speed MTB cassettes.
Engagement: Pawl ratchet system with 36 engagement points (10° engagement).
Braking System: Center Lock disc mount.
Bearings: Contact and labyrinth seals; some models utilize cartridge bearings.
Axle Material: Durable steel.
