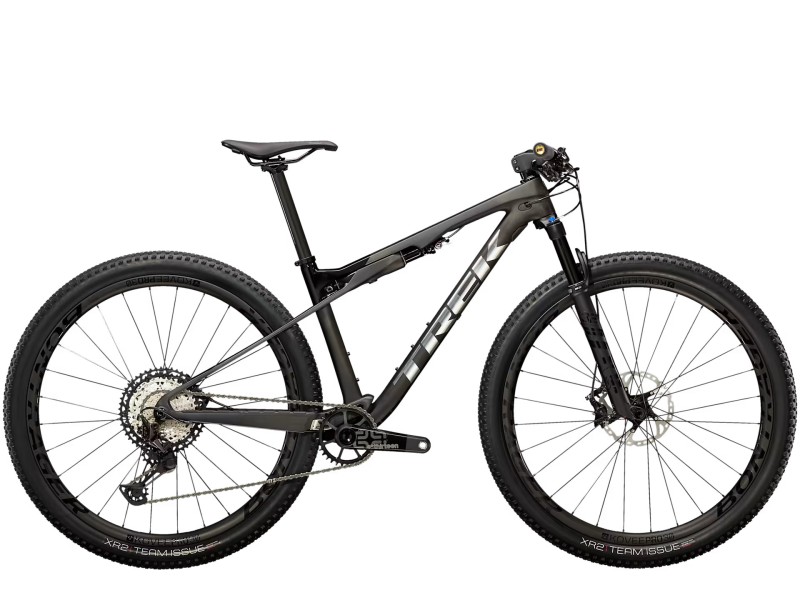

TREK Supercaliber 9.8 XT

Frame OCLV Mountain Carbon main frame and stays, IsoStrut, tapered head tube, Knock Block, Control Freak internal routing, Boost148, 60 mm travel

Fork Fox Performance 32 Step-Cast, Float EVOL air spring, GRIP 2-position damper, remote lockout, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 100 mm travel

Shock Trek IsoStrut, Fox Performance shock, air spring, DPS 2-position remote damper, 235 mm x 32.5 mm

Suspension lever Fox 2-position dual lockout lever

Max compatible fork travel 120mm (531mm axle-to-crown)

Wheels

Wheel front Bontrager Kovee Pro 30 Carbon, Tubeless-Ready, 6-bolt, Boost110, 15 mm thru axle

Wheel rear Bontrager Kovee Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, Shimano MicoSpline, 6-bolt, Boost148, 12 mm thru axle

Skewer rear Bontrager Switch thru-axle, removable lever

Rim Bontrager Kovee Pro 30, OCLV Mountain Carbon, Tubeless-Ready

Tyre Bontrager XR2 Team Issue, Tubeless-Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29 x 2.20"

Tyre part Bontrager TLR sealant, 180 ml/6 oz

Rim strip Bontrager TLR

Max tyre size Frame: 29x2.20" Fork: See manufacturer

Drivetrain

expand_less

Shifter Shimano XT M8100, 12-speed

Rear derailleur Shimano XT M8100, long cage

*Crank Size: S

E*thirteen TRS Race Carbon, 30 mm spindle, 34T alloy ring, 52 mm chain line, 170 mm length

Size: M, M/L, L, XL, XXL

E*thirteen TRS Race Carbon, 30 mm spindle, 34T alloy ring, 52 mm chain line, 175 mm length

Bottom bracket E*thirteen BB20-92

Cassette Shimano XT M8100, 10-51, 12-speed

Chain Shimano Ultegra/XT M8100, 12-speed

Max. chainring size 36T

Components

expand_less

Saddle Bontrager Verse Elite, austenite rails, 145 mm width

*Seatpost Size: S

Bontrager Pro, OCLV Carbon, 31.6 mm, 0 mm offset, 330 mm length

Size: M, M/L, L, XL, XXL

Bontrager Pro, OCLV Carbon, 31.6 mm, 0 mm offset, 400 mm length

*Handlebar/stem (integrated) Size: S, M

Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0 mm handlebar rise, 750 mm width, -13-degree stem rise, 70 mm length

Size: M/L, L

Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0 mm handlebar rise, 750 mm width, -13-degree stem rise, 80mm length

Size: XL, XXL

Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0 mm handlebar rise, 750 mm width, -13-degree stem rise, 90mm length

Grips ESI Chunky

Head set Knock Block Integrated, 62-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom

Brake Shimano Deore XT M8100 hydraulic disc

*Brake rotor Size: S, M, M/L, L, XL, XXL

Shimano RT76, 6-bolt, 160 mm

Size: S, M, M/L, L, XL, XXL

Shimano RT76, 6-bolt, 180 mm

Rotor size Max brake rotor sizes: 180mm front, 160mm rear
