TREK Dual Sport 2

Chassis Size: S

Alpha Gold Aluminum, curved top tube, DuoTrap S compatible, internal cable routing, fender and rack mounts, post mount disc, kickstand mount, 135x5mm QR

Size: M, L, XL

Alpha Gold Aluminum, DuoTrap S compatible, internal cable routing, fender and rack mounts, post mount disc, kickstand mount, 135x5mm QR

Fork SR Suntour NEX, coil spring, preload, hydraulic lockout, 100x5mm, 63mm travel

Wheels

Front hub Formula DC-20, alloy, 6 bolt, 5x100mm QR

Rear hub Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR

Rear lock QR 152x5mm

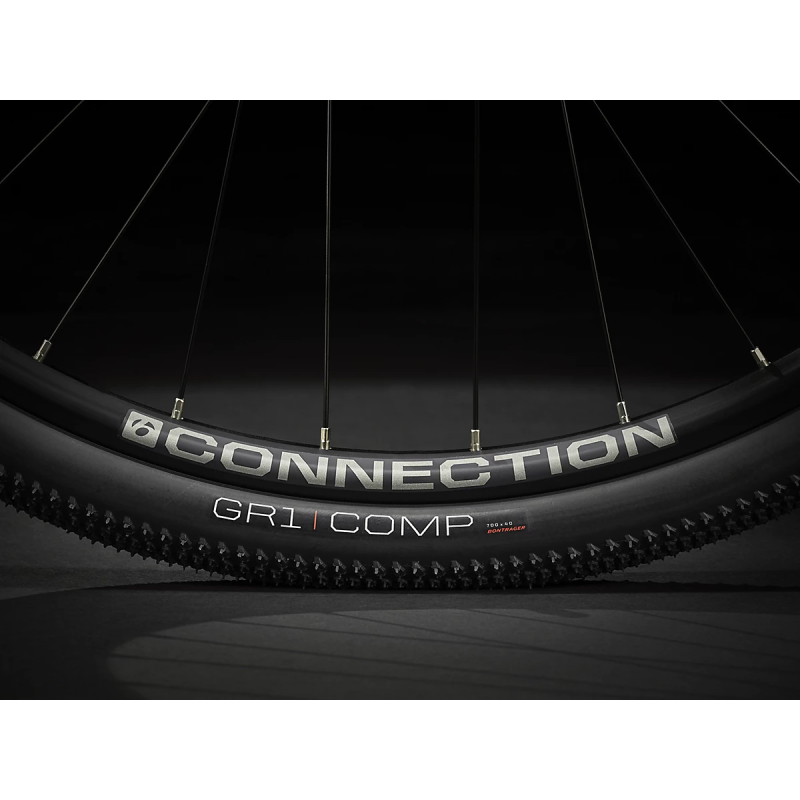

Circle Bontrager Connection, alloy, dual chamber, 32 hole, Schrader valve

Tire Bontrager GR1 Comp, hollow bead, 60tpi, 700x40mm

Max. tire size Frame: 700x45mm with fenders, 29x2.10" without fenders, Fork: See manufacturer

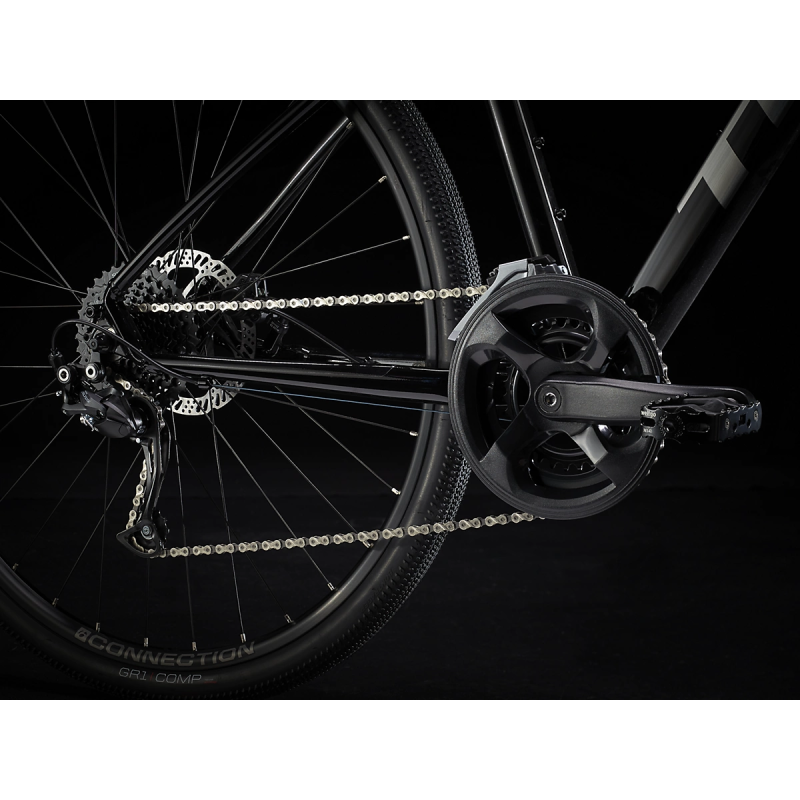

Transmission

Command Shimano Altus M2010, 9 speed

Front derailleur Shimano Altus T3000, 34.9mm clamp, top swing, dual pull

Rear derailleur Shimano Altus M2000, long cage

Garnish Forged alloy, 46/30, chain guard, length 170mm

Bottom bracket Sealed cartridge, 68mm

Box Shimano HG200, 11-36, 9 speed

Chain KMC X9

Pedal Wellgo M141, resin body, alloy bottle cage

Components

Saddle Bontrager Sport

Seatpost Bontrager alloy, 27.2mm, 12mm offset, 330mm length

*Handlebar Size: S, M

Bontrager Alloy, 31.8mm, 15mm rise, 600mm width

Size: L, XL

Bontrager Alloy, 31.8mm, 15mm rise, 660mm width

Knobs Bontrager Satellite

*Handlebar stem Size: S

Bontrager Comp, 31.8mm, Blendr compatible, 7 degrees, 70mm length

Size: M, L

Bontrager Comp, 31.8mm, Blendr compatible, 7 degrees, 80mm length

Size: XL

Bontrager Comp, 31.8mm, Blendr compatible, 7 degrees, 100mm length

Steering series Sealed Cartridge Bearings, 1-1/8" Threadless

Brake set Tektro HD-M275 hydraulic disc, 160mm rotor
