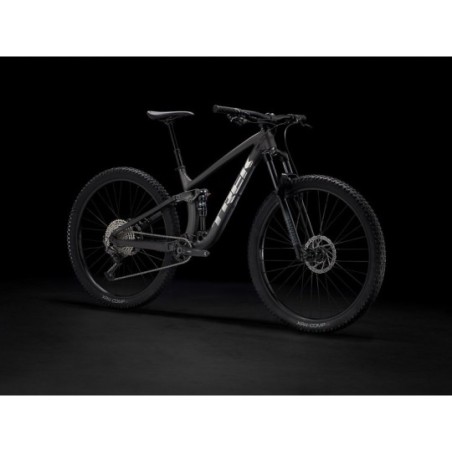

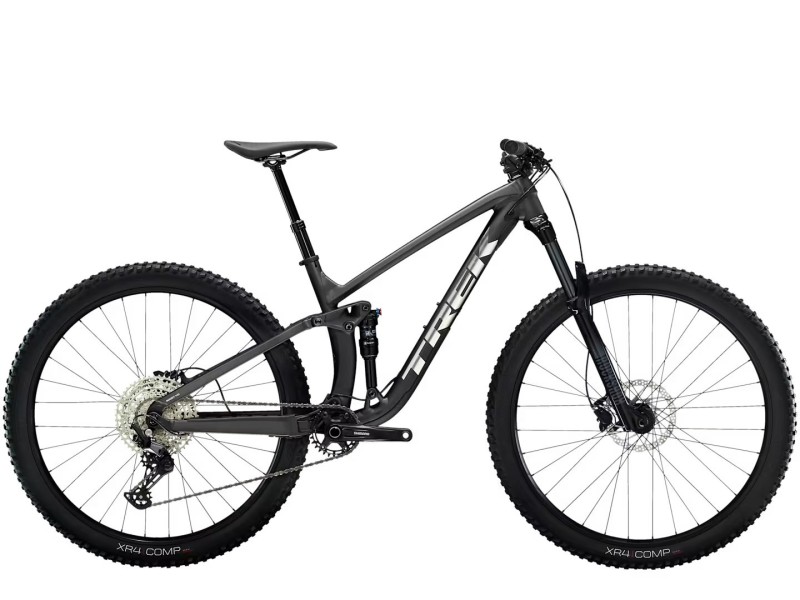

TREK Fuel EX5

Chassis

Alpha Platinum Aluminum, tapered head tube, Knock Block, Control Freak internal routing, down tube guard, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 130mm travel

*Fork

Size: XS, S

RockShox Recon Silver, DebonAir spring, Motion Control damper, lockout, tapered steerer, 46mm offset, Boost110, Maxle Stealth, 140mm travel

Size: S, M, ML, L, XL, XXL

RockShox Recon Silver, DebonAir spring, Motion Control damper, lockout, tapered steerer, 42mm offset, Boost110, Maxle Stealth, 140mm travel

*Suspension

Size: XS, S

X-Fusion Pro 2, shock absorber and 2 positions, 210mm x 52.5mm

Size: XS, S

X-Fusion Pro 2, shock absorber and 2 positions, 210mm x 52.5mm

Size: S, M, ML, L, XL, XXL

X-Fusion Pro 2, shock absorber and 2 positions, 210mm x 55mm

Wheels

Front hub

Bontrager alloy, 6-bolt, Boost110, 15mm thru axle

Rear hub

Bontrager alloy, sealed bearing, 6-bolt, Shimano Micro Spline freehub, Boost148, 12mm thru axle

Rear lock

Bontrager Switch thru axle, removable lever

Circle

Alex MD35, tubeless compatible, 32 holes, 35mm width, Presta valve

Rays

14g stainless steel, black

*Tire

Size: XS, S

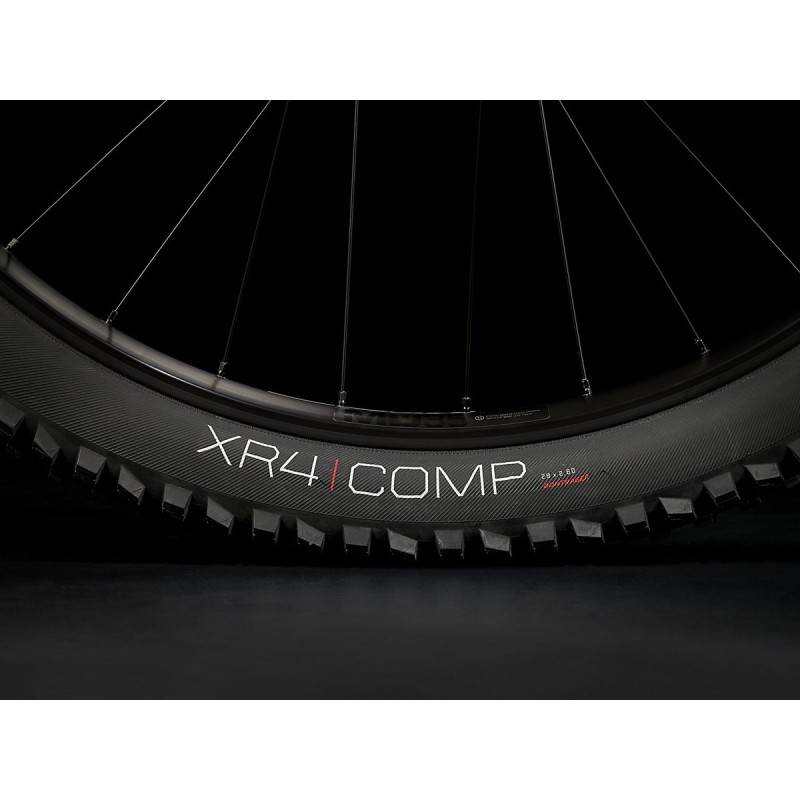

Bontrager XR4 Comp, cable bead, 30tpi, 27.5x2.60"

Size: S, M, ML, L, XL, XXL

Maxxis Rekon EXO, wire bead, 60 tpi, 29x2.60''

Size: S, M, ML, L, XL, XXL

Bontrager XR4 Comp, cable bead, 30tpi, 29x2.60"

Paranipple

Bontrager TLR

Max. tire size

Frame: 29x2.40", Fork: See manufacturer

Transmission

Command

Shimano Deore M6100, 12 speed

Rear derailleur

Shimano Deore M6100, long cage

*Crankset

Size: XS, S, M, ML, L

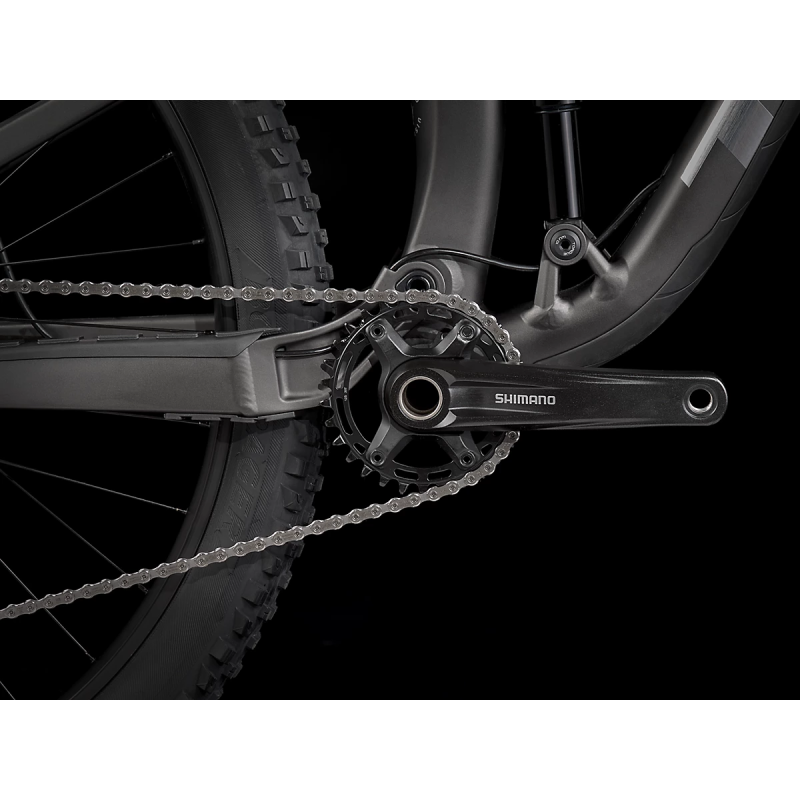

Shimano MT511, 30T steel chainring, 52mm chainline, 170mm length

Size: M, ML, L, XL, XXL

Shimano MT511, 30T steel chainring, 52mm chainline, 175mm length

Bottom bracket

Shimano MT500, 92mm, PressFit

Cassette

Shimano Deore M6100, 10-51, 12 speed

Chain

Shimano Deore M6100, 12 speed

Max. crown size

1x: 34T

Components

Saddle

Bontrager Arvada, steel rails, 138mm width

*Seatpost

Size: XS, S

TranzX JD-YSP18, 100mm travel, internal cable routing, 31.6mm, 361mm length

Size: M, ML, L, XL, XXL

TranzX JD-YSP18, 130mm travel, internal cable routing, 31.6mm, 425mm length

Handlebar

Bontrager Alloy, 31.8mm, 15mm rise, 750mm width

Knobs

Bontrager XR Trail Comp, nylon block

Handlebar stem

Bontrager Rhythm Comp, 31.8mm, 0-degree, 50mm length

Headset

Integrated Knock Block, 58° radius, cartridge bearing, 1-1/8" top, 1.5" bottom

Brake

Shimano hydraulic disc, MT201 lever, MT200 caliper

Brake rotor

Shimano RT56, 6-bolt, 180mm
