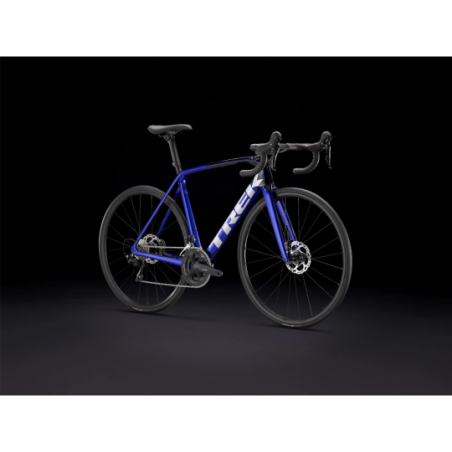

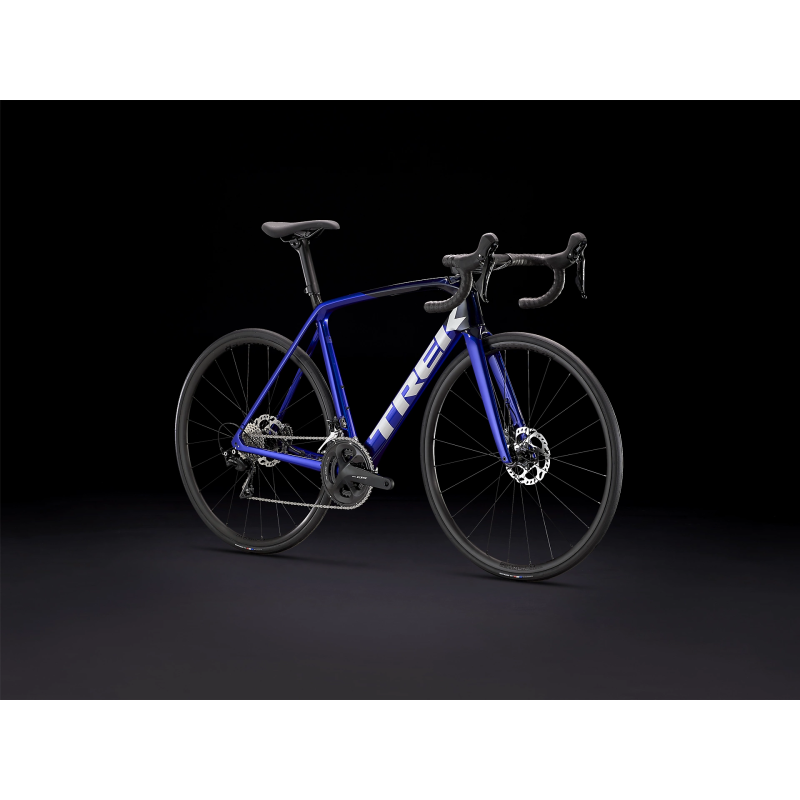

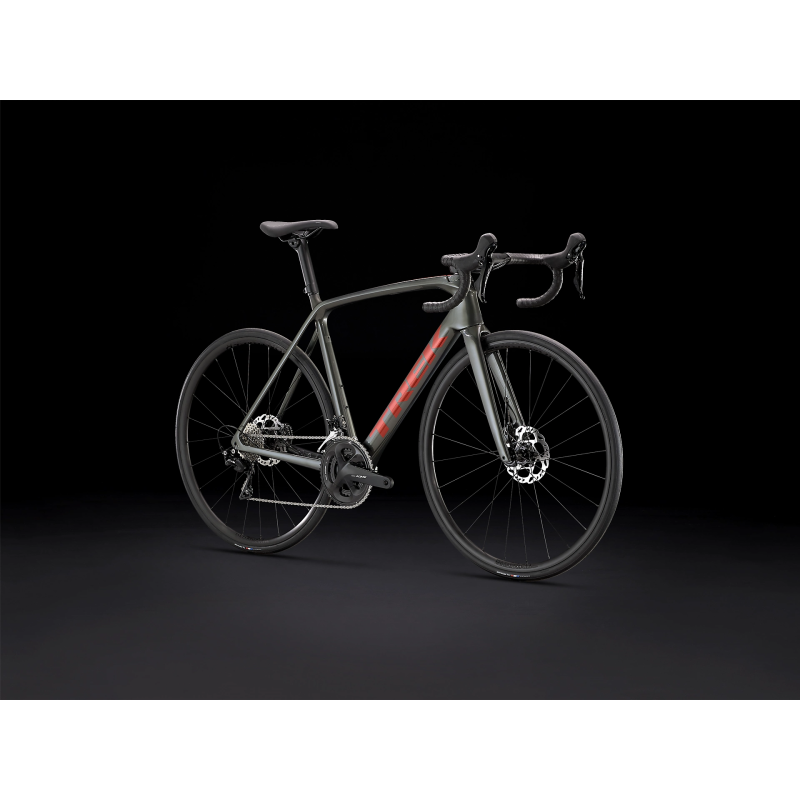

TREK Emonda Sl5 Disc

Ultralight 500 Series OCLV Carbon, race optimized carbon tubeset, tapered head tube, internal cable routing, DuoTrap S compatible, flat mount disc, 142x12 mm thru axle

Fork Émonda SL full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm thru axle

Frame trim H1.5 Race

Wheels

Front hub Bontrager alloy, sealed bearing, Centerlock disc, 100x12mm thru axle

Front locking Bontrager Switch thru-axle, removable lever

Mozzo posteriore Lega Bontrager, cuscinetto sigillato, disco centerlock, ruota libera Shimano 11 velocità, perno passante 142x12mm

Bloccaggio posteriore Perno passante Switch Bontrager, leva rimovibile

Cerchio Bontrager Paradigm SL, Tubeless Ready, 24 fori, larghezza 21mm, valvola Presta

Pneumatico Bontrager R1 Hard-Case Lite, tallone rigido, 60tpi, 700x28mm

Dimensioni max. dello pneumatico 28mm

Trasmissione

*Comando Misura: 47, 50, 52

Shimano 105 R7025, leva reach corto, 11 velocità

Misura: 54, 56, 58, 60, 62

Shimano 105 R7020, 11 velocità

Deragliatore anteriore Shimano 105 R7000, a saldare

Deragliatore posteriore Shimano 105 R7000, portaborraccia corto, pignone 30T max

*Guarnitura Misura: 47

Shimano 105 R7000, 50/34 (compatta), lunghezza 165mm

Misura: 50, 52

Shimano 105 R7000, 50/34 (compatta), lunghezza 170mm

Misura: 54, 56, 58

Shimano 105 R7000, 50/34 (compatta), lunghezza 172,5mm

Misura: 60, 62

Shimano 105 R7000, 50/34 (compatta), lunghezza 175mm

Movimento centrale Praxis, T47 filettato, cuscinetto interno

Cassetta Shimano 105 R7000, 11-30, 11 speed

Catena Shimano 105 HG601, 11 velocità

Dimensione max. della corona 1x: 50T, 2x: 53/39

Componenti

*Sella Misura: 47, 50, 52

Bontrager Verse Short Comp, binari in acciaio, larghezza 155mm

Misura: 54, 56, 58, 60, 62

Bontrager Verse Short Comp, binari in acciaio, larghezza 145mm

*Reggisella Size: 47, 50, 52, 54

Bontrager alloy seatmast cap, 10mm offset, short length

Size: 56, 58, 60, 62

Bontrager alloy seatmast cap, 10mm offset, long length

*Handlebar Size: 47, 50

Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 38cm width

Size: 52

Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 40cm width

Size: 54, 56, 58

Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 42cm width

Size: 60, 62

Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 44cm width

Handlebar tape Bontrager Supertack Perf Tape

*Handlebar stem Size: 47

Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length

Size: 50

Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length

Size: 52, 54

Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length

Size: 56

Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length

Size: 58, 60, 62

Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 110mm length

Brake Shimano 105 hydraulic disc

Brake rotor Shimano RT70, center lock, 160mm

Disk size Max brake rotor size: 160mm front & rear

Weight

Weight 56 - 8.87kg / 19.55lbs
