Powerfly Sport 4 Equipped

Chassis Size: XS , S

Alpha Platinum Aluminum, curved top tube, RIB (Removable Integrated Battery) system, tapered head tube, Control Freak internal routing, Motor Armor, Boost148, 12mm thru axle

Size: M , L , XL

Alpha Platinum Aluminum, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, motor guard, Boost148, 12mm thru axle

*Fork Size: XS

SR Suntour XCM 34, coil spring, preload, lockout, tapered steerer, 44mm offset, Boost110, 15mm thru axle, 80mm travel

Size: S , M , L , XL

SR Suntour XCM 34, coil spring, preload, lockout, tapered steerer, 44mm offset, Boost110, 15mm thru axle, 120mm travel

Max excursion fork compatible 120mm (526mm from pin to crown), XS and S: 100mm (492mm from pin to crown)

Wheels

expand_less

Front hub Formula DC-511, 6-bolt, Boost110, 15mm thru-axle

Rear hub Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano 8/9/10 freehub, Boost148, 12mm thru axle

Rear locking Bontrager Switch thru-axle, removable lever

Circle Bontrager Connection, double chamber, 32 holes, 20mm width, Presta valve

*Tire Size: XS , S

Bontrager LT4 Expert, reflective band, cable bead, 60tpi, 27.5x2.40"

Size: M , L , XL

Bontrager LT4 Expert, reflective band, cable bead, 60tpi, 29x2.40"

size max. of the tyre Frame: 29x2.60" or 27.5x2.8" (XS & S: 27.5x2.60") Fork: See manufacturer

Transmission

expand_less

Command Shimano Deore M4100, 10-speed

Rear derailleur Shimano Deore M5120, long cage

Crankset FSA Bosch CK-220, 36T chainring, 165mm length

Crown FSA, 36 teeth, steel

Cassette Shimano Deore M4100, 11-46, 10-speed

Chain KMC X10, 10-speed

Pedal VP-536 nylon platform

size max. of the crown 38T

Components

expand_less

Saddle Bontrager Commuter Comp

*Seatpost Size: XS , S

Bontrager alloy, 31.6mm, 12mm offset, 330mm length

Size: M

Bontrager alloy, 31.6mm, 12mm offset, 360mm length

Size: L , XL

Bontrager alloy, 31.6mm, 12mm offset, 400mm length

handlebar Bontrager alloy, 31.8mm, 15mm rise, 720mm width

Knobs Bontrager XR Endurance Comp, locking

*Handlebar stem Size: XS

Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 50mm length

Size: S , M

Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 60mm length

Size: L

Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 70mm length

Size: XL

Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 80mm length

Headset FSA IS-2, 1-1/8" top, 1.5" bottom

Brake Tektro HD-M275 hydraulic disc

*Brake rotor Size: XS , S , M , L , XL

Tektro, 180mm, 6 bolt

Size: XS , S , M , L , XL

Tektro, 6 bolt, 203mm

Brake sets Tektro HD-M275 hydraulic disc

Disk size Max brake rotor size: front see fork manufacturer, rear 203mm

Accessories

expand_less

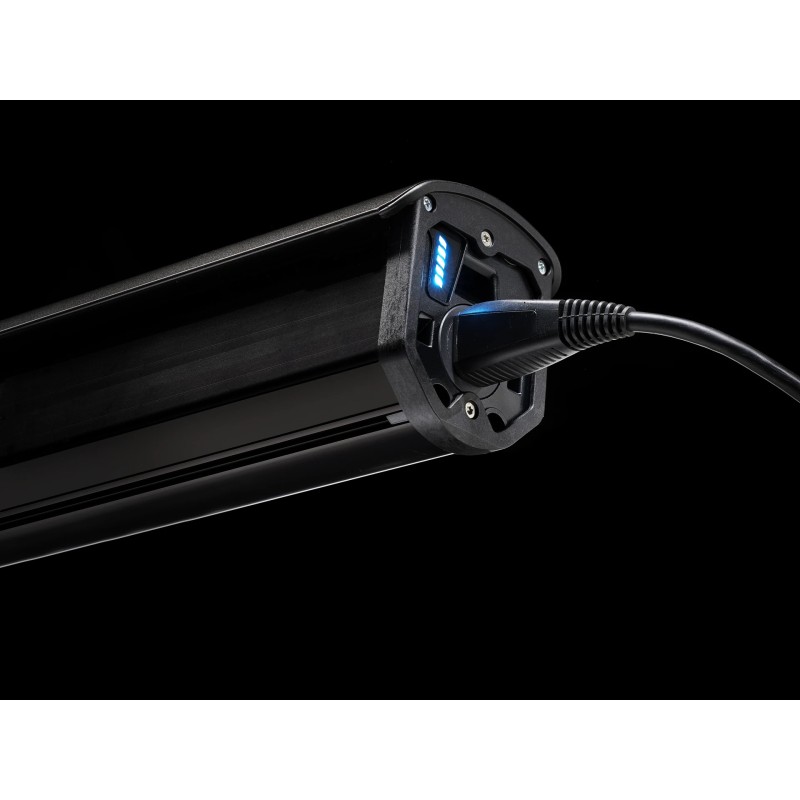

Drums Bosch PowerTube 500Wh, intelligent system

Charger Bosch standard 2A, 230V, intelligent system

Controllers Bosch Intuvia 100, intelligent system

Motor Bosch Performance Line CX, Smart System, magnesium motor housing, 85 Nm

*Light Size: XS , S , M , L , XL

AXA Blueline

Size: XS , S , M , L , XL

AXA Compact Line 35, headlight

Computer Bosch LED remote control, intelligent system

Easel Pletscher CompFlex 18

*Fenders Size: XS , S

Trek Powerfly 27.5" custom fender

Size: XS , S , M , L , XL

Trek Powerfly custom fender

Size: M , L , XL

Trek Powerfly 29" custom fender
