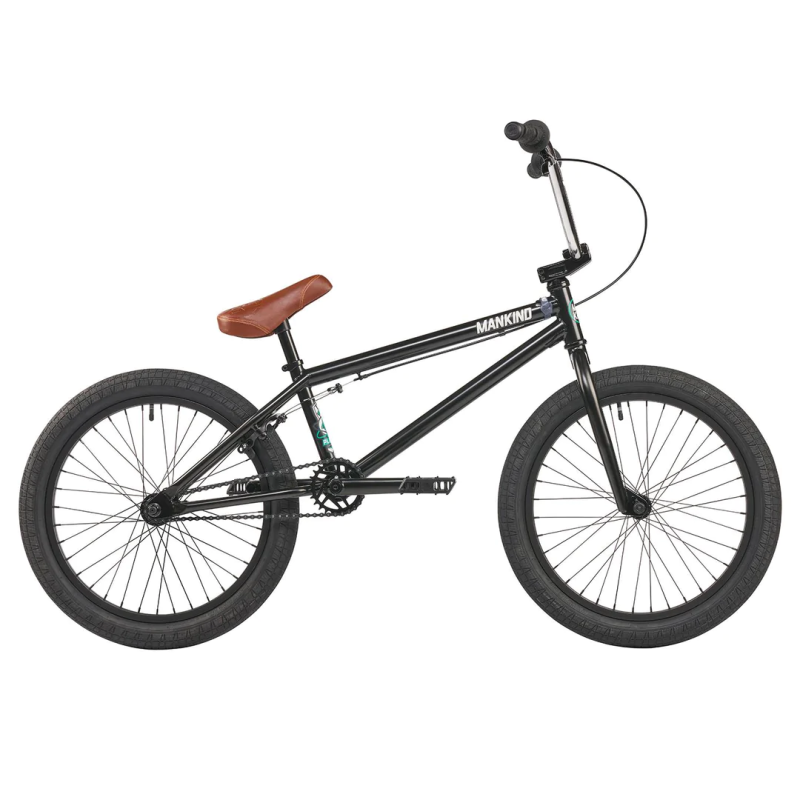

MANKIND Planet 20"
The Planet 20” Bike is our entry level, beginner bike for the younger and smaller rider. Therefore we have designed size, geometry and weight in order to make it as ideal as possible to learn to ride BMX and to have a great time. The Planet is available in 14” ,16” and 20”. The Planet 20” has a shorter 20.0” Top Tube, and lower 8.25” bar for an easy and direct handling for the younger rider from about 150cm to 170cm of size.
FRAME: 1020 Hi-Ten Steel Frame - Top & Down Tube Gusset
TOP TUBE: 20.0”
CHAIN STAY: 13.25”
HEAD TUBE: 75°
SEAT TUBE: 71°
BB HEIGHT: 11.5”
STAND OVER: 8.3”
BRAKE MOUNTS Welded
FORK: 1020 Hi-Ten Steel - 2-PC Steerer, Tapered Legs, 28mm offset
BARS: BARS 1020 Hi-Ten Steel, 8.25” Rise, Back: 12°/ Up: 2°, Width: 28.3”
GRIPS: Mankind Asadi Grips
BAR ENDS: Mankind Nylon
STEM: Mankind Control Top Load Stem - Alloy - 50mm reach
HEADSET: Standard 1-1/8” Threadless
BRAKE: Alloy U-brake
BRAKE LEVER: Alloy Lever - 2-Finger Design
REAR HUB: Mankind Control Cassette Hub – Semi Sealed - 14mm axle - 9t
FRONT HUB: Steel - Loose Ball - 3/8” axle
SPROCKET: Mankind Control Steel 25t
CRANKS: Chromoly – 8 Spline - 3-Piece - 170mm - 19mm
BOTTOM BRACKET: American Loose Ball - 19mm
CHAIN: PYC 410 - black
PEDALS: Plastic Platform 9/16”
FRONT RIM: 6061 Alloy - Single Wall 36H
REAR RIM: 6061 Alloy - Single Wall 36H
SPOKES: Steel Spokes – 14mm nipples - black
FRONT TIRE: Park/Street Tire LP 60 PSI - 2.3”
REAR TIRE: Park/Street Tire LP 60 PSI - 2.3”
PEG: None
SEAT: Mankind Planet Mid Seat/Post Combo
SEAT POST: Seat/Post Combo
SEAT POST CLAMP: Mankind Alloy - black
COLORS: Ed Black, Semi Matte Blue
WEIGHT: 10,60 kg
