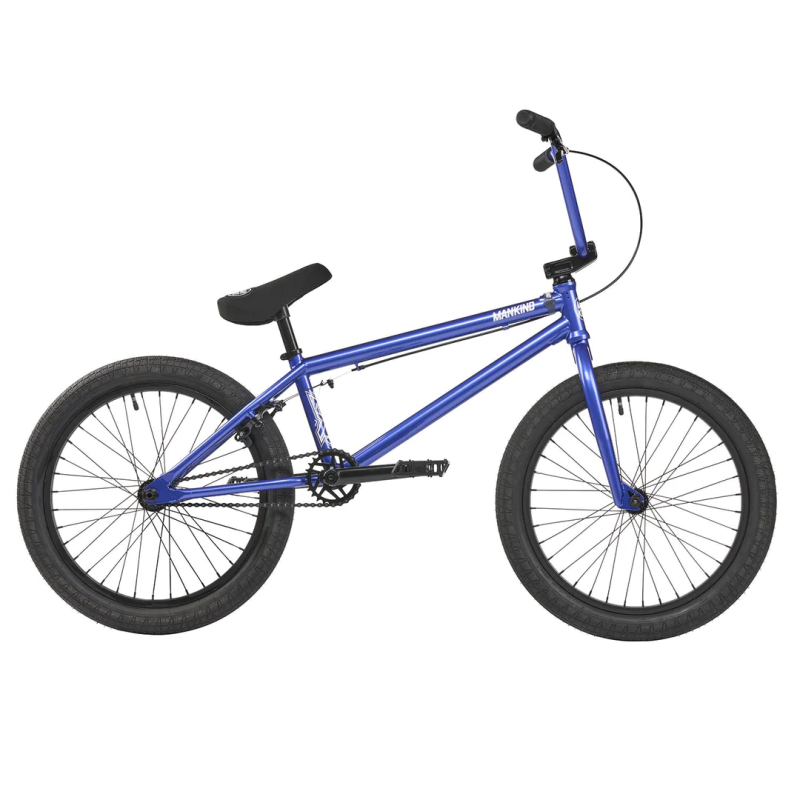

MANKIND NXS 20"
The Mankind NXS 20” Bike combines great looks with amazing specs and features a frame with a top tube length of 20.5” for riders from a size from 170cm on up to about 180cm. Connect with the NXS to begin your journey into the world of BMX!
FRAME: 1020 Hi-Ten Steel Frame - Top & Down Tube Gusset
TOP TUBE: 20.5”
CHAIN STAY: 13.25”
HEAD TUBE: 75°
SEAT TUBE: 71°
BB HEIGHT: 11.5”
STAND OVER: 8.5”
BRAKE MOUNTS: Welded
FORK: 1020 Hi-Ten Steel - 1-PC Steerer, Tapered Legs, 28mm offset
BARS: 1020 Hi-Ten Steel, 8.5” Rise, Back: 12°/ Up: 2°, Width: 28.5”
GRIPS: Mankind Control Grips
BAR ENDS Mankind Nylon
STEM: Mankind Control Top Load Stem - Alloy - 50mm reach
HEADSET: Mankind Control Sealed Integrated
BRAKE: Alloy U-brake
BRAKE LEVER: Alloy Lever - 2-Finger Design
REAR HUB: Mankind Control Cassette Hub – Sealed - 14mm axle - 9t Driver
FRONT HUB: Alloy - Loose Ball - 3/8” axle
SPROCKET Mankind Control Steel 25t
CRANKS: Chromoly – 8 Spline - 3-Piece - 170mm - 19mm
BOTTOM BRACKET: Mid BB Sealed - 19mm
CHAIN: PYC 410 - black
PEDALS: Plastic Platform
FRONT RIM: 6061 Alloy - Single Wall 36H
REAR RIM: 6061 Alloy - Single Wall 36H
SPOKES: Steel Spokes – 14mm nipples - black
FRONT TIRE: Park/Street Tire LP 60 PSI - 2.3”
REAR TIRE: Park/Street Tire LP 60 PSI - 2.3”
PEGS: None
SEAT: Mankind NXS Mid Seat/Post Combo
SEAT POST: Seat/Post Combo
SEAT POST CLAMP: Mankind Control Alloy - black
COLORS: Gloss Black, Chrome Red, Gloss Grey
WEIGHT: 10,70 kg
