Shimano

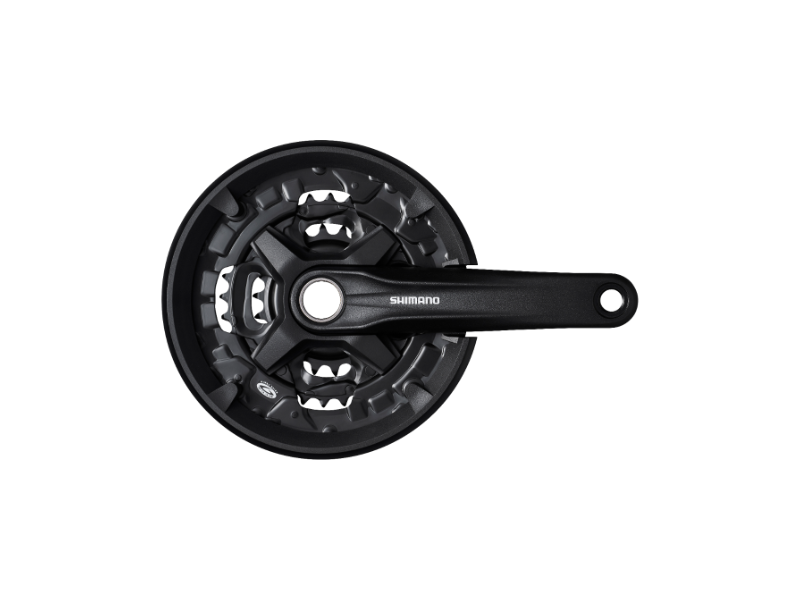

SHIMANO Crankset FC-MT210-3 9-speed 175.0 mm 44-32-22T Black
With a 2-piece construction compatible with outboard 24mm bottom brackets, the SHIMANO FC-MT210-3 is designed for 3x9 speed MTB drivetrains. It features SG-X chainrings and precise, reliable shifting.
MODEL NO FC-MT210-3
SERIES SHIMANO ALIVIO M3100 Series
Color Black
Remarks SHIMANO logo
Rear speeds 9
Compatible chain HG 9-speed
Chain line (mm) 50
O.L.D.|Thru (mm) 142
O.L.D.|QR/Nut (mm) 135
P.C.D. (mm) Riveted
Spider/gear arms 4
Chainring combination 40-30-22T, 44-32-22T
Q-factor (mm) 176
Crank arm length (mm)|170 ✔
Crank arm length (mm)|175 ✔
Optional chain guard|With chain guard ✔
Optional chain guard|Without chain/bash guard ✔
2-PIECE CRANKSET ✔
Compatible bottom bracket type|Outboard ✔
Recommended bottom bracket|Threaded (normal) BB-MT501
Recommended bottom bracket|Press-Fit BB-MT500-PA
Threaded bottom bracket shell width (mm)|68 ✔
Threaded bottom bracket shell width (mm)|73 ✔
Stainless chain guard fixing screw ✔
Crank fixing screw included ✔
