Trek

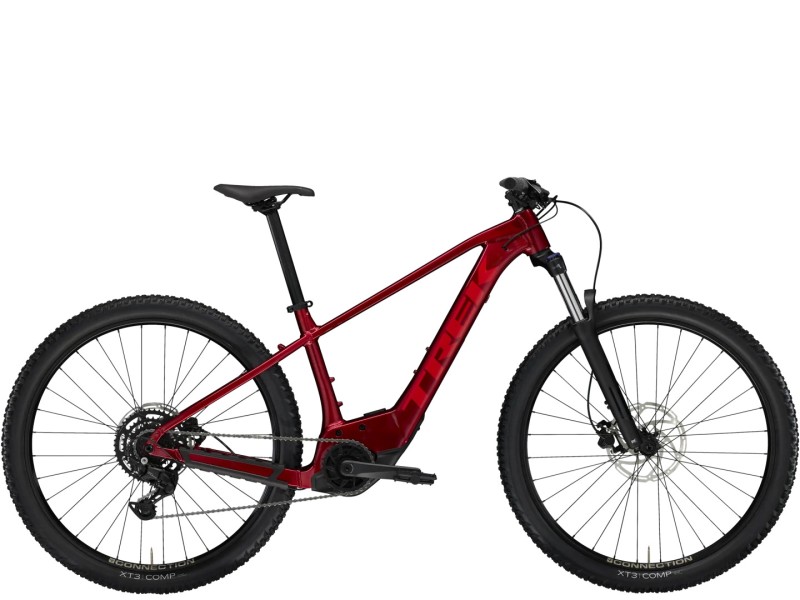

TREK Marlin + 6
Marlin+ 6 is an electric mountain bike ready to give you a little extra push during your trail rides, without spending a fortune. It's based on the same fun and safe geometry as the non-electric Marlin model, but offers all the power of Bosch's Active Line Plus motor. The 120mm front suspension soaks up rocks, roots and potholes, while the 9-speed Shimano CUES groupset is sturdy and reliable.
Chassis Size: XS
Alpha Platinum Aluminium, curved top tube, tapered head tube, internal cable routing, rack, fender and kickstand mounts, UDH, Boost148, 12mm thru axle
Size: S , M , L , XL
Alpha Platinum Aluminium, tapered head tube, internal cable routing, rack, fender and kickstand mounts, UDH, Boost148, 12mm thru axle
*Fork Size: XS
SR Suntour XCM 34, coil spring, preload, lockout, tapered steerer, 44mm offset, Boost110, 15mm thru axle, 100mm travel
Size: S
SR Suntour XCM 34, coil spring, preload, lockout, tapered steerer, 44mm offset, Boost110, 15mm thru axle, 120mm travel
Size: M, L, XL
SR Suntour XCM 34, coil spring, preload, lockout, tapered steerer, 44mm offset, Boost110, 15mm thru axle, 120mm travel
Wheels
Front hub Bontrager alloy, sealed bearing, alloy axle, Centerlock, Boost110, 15mm thru axle
Rear hub Formula CL-3248, alloy, CenterLock, Shimano 8/9/10 freehub, Boost148, 12mm thru axle
Rear locking Bontrager Switch thru axle, removable lever
Circle Bontrager Connection, double chamber, 32 holes, 20mm width, Presta valve
*Tire Size: XS , S
Bontrager XT3 Comp, rigid bead, 30tpi, 27.5x2.40"
Size: M, L, XL
Bontrager XT3 Comp, rigid bead, 30tpi, 29x2.40"
Electronic system
Drums Bosch CompactTube 400Wh
Charger Bosch standard 2A, 230V, intelligent system
Computer Bosch Purion 200
Motor Bosch Active Line Plus, 50 Nm
Transmission
Command Shimano U4000, 9 speed
Rear derailleur Shimano CUES U4000
Crankset FSA CK-220, length 165mm
Crown FSA, 32 teeth, steel
Cassette Shimano LINKGLIDE LG300, 11-46, 9 speed
Chain Shimano LG500, 9/10/11 speed
Pedal VP-536 nylon platform
Components
Saddle Bontrager Arvada, steel rails, 138mm width
*Seatpost Size: XS, S
Bontrager alloy, 31.6mm, 12mm offset, 330mm length
Size: M
Bontrager Alloy, 31.6mm, 12mm offset, 360mm length
Size: L, XL
Bontrager alloy, 31.6mm, 12mm offset, 400mm length
*Handlebar Size: XS, S
Bontrager alloy, 31.8mm, 15mm rise, 720mm width
Size: M, L, XL
Bontrager alloy, 31.8mm, 15mm rise, 750mm width
Knobs Bontrager XR Endurance Comp, locking
*Handlebar stem Size: XS, S
Bontrager alloy, 31.8mm, Blendr compatible, 7 degrees, 35mm length
Size: M, L
Bontrager alloy, 31.8mm, Blendr compatible, 7 degrees, 50mm length
Size: XL
Bontrager Alloy, 31.8mm, Blendr compatible, 7 degrees, 60mm length
Headset Semi-integrated, ball bearing, 1- 1/8'' top, 1.5'' bottom
Brake rotor Tektro, centerlock, 203mm
Brake set Tektro HD-M275 hydraulic disc
Weight
Weight M - 22.45 kg / 49.5 lbs (With inner tubes)
