Trek

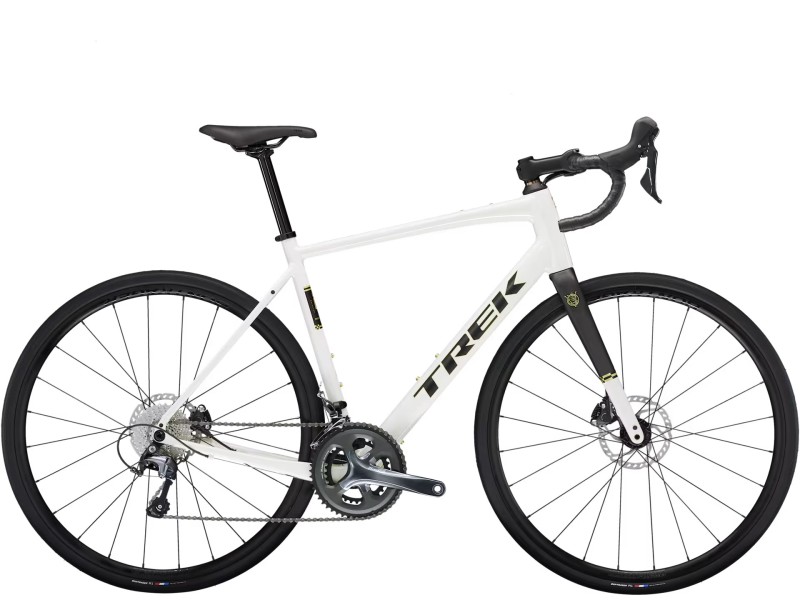

TREK Domane AL4 Gen 4
The Domane AL 4 is a fast and versatile racing bike: the perfect choice for anyone who wants to get into road cycling.
Chassis 100 Series Alpha Aluminum, tapered head tube, internal cable routing, fender mounts, flat mount disc, UDH, 142x12mm thru axle
Fork Domane AL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle
Weight
Weight 56 - 10.35 kg / 22.82 lbs
Weight Limit This bike has a maximum overall weight limit (combined weight of bike, rider and load) of 125kg.
Transmission
Command Shimano Tiagra R4720, short reach lever, 10 speed
Front derailleur Shimano Tiagra 4700, 31.8mm clamp
Rear derailleur Shimano Tiagra 4700, long cage, 34T max sprocket
*Crankset Size: 44
Shimano Tiagra 4700, 50/34, length 165mm
Size: 49, 52
Shimano Tiagra 4700, 50/34, length 170mm
Size: 54, 56
Shimano Tiagra 4700, 50/34, length 172.5mm
Size: 58, 61
Shimano Tiagra 4700, 50/34, length 175mm
Central movement Shimano RS501 BSA
Cassette Shimano 10 speed, 11-32T
Chain Shimano Tiagra HG54, 10 speed
Max. size of the crown 1x: 50T, 2x: 50/34
Wheels
Front hub Formula RX-512 alloy, 6-bolt, 100x12mm thru axle
Front locking Bontrager Switch beveled thru axle, removable lever
Rear hub Formula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142x12mm thru axle
Rear locking Bontrager Switch beveled thru axle, removable lever
Circle Bontrager Paradigm SL, Tubeless Ready, 24 hole, 21mm width, Presta valve
Rays Stainless steel 14g, black
Tire Bontrager R1 Hard-Case Lite, hard bead, 60tpi, 700x32mm
Max. dimensions of the tyre 38mm without fenders, 35mm with fenders
Components
Saddle Verse Short, steel rails, 145mm width
*Seatpost Size: 44, 49
Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 250mm length
Size: 52, 54, 56, 58, 61
Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 330mm length
*Handlebar Size: 44
Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 36cm control width, 40cm drop width
Size: 44, 49
Bontrager Comp VR- S, alloy, 31.8mm, reach 81mm, drop 118mm, width 38cm
Size: 49
Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 38cm control width, 42cm drop width
Size: 52
Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 40cm control width, 44cm drop width
Size: 52
Bontrager Comp VR- S, alloy, 31.8mm, reach 81mm, drop 118mm, width 40cm
Size: 54, 56
Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 42cm control width, 46cm drop width
Size: 54, 56
Bontrager Comp VR- C, alloy, 31.8mm, reach 100mm, drop 124mm, width 42cm
Size: 58, 61
Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 44cm control width, 48cm drop width
Size: 58, 61
Bontrager Comp VR- C, alloy, 31.8mm, reach 100mm, drop 124mm, width 44cm
Handlebar tape Bontrager Supertack Perf Tape
*Handlebar stem Size: 44
Bontrager Elite, 31.8mm, Blendr compatible, 7 degrees, 70mm length
Size: 49
Bontrager Elite, 31.8mm, Blendr compatible, 7 degrees, 80mm length
Size: 52, 54
Bontrager Elite, 31.8mm, Blendr compatible, 7 degrees, 90mm length
Size: 56, 58
Bontrager Elite, 31.8mm, Blendr compatible, 7 degrees, 100mm length
Size: 61
Bontrager Elite, 31.8mm, Blendr compatible, 7 degrees, 110mm length
Brake Shimano Tiagra hydraulic disc
Brake rotor Shimano RT66, 6 bolt, 160mm
Disk size Max brake rotor size: 160mm front and rear
