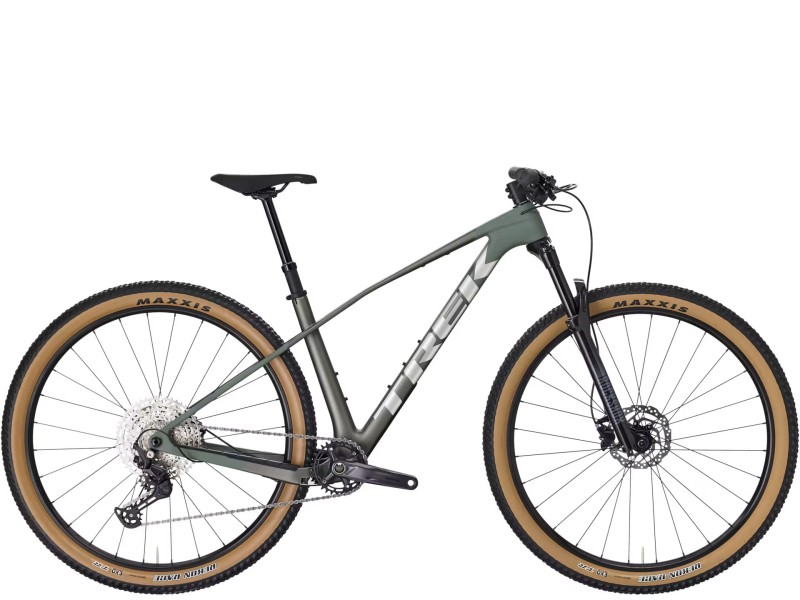

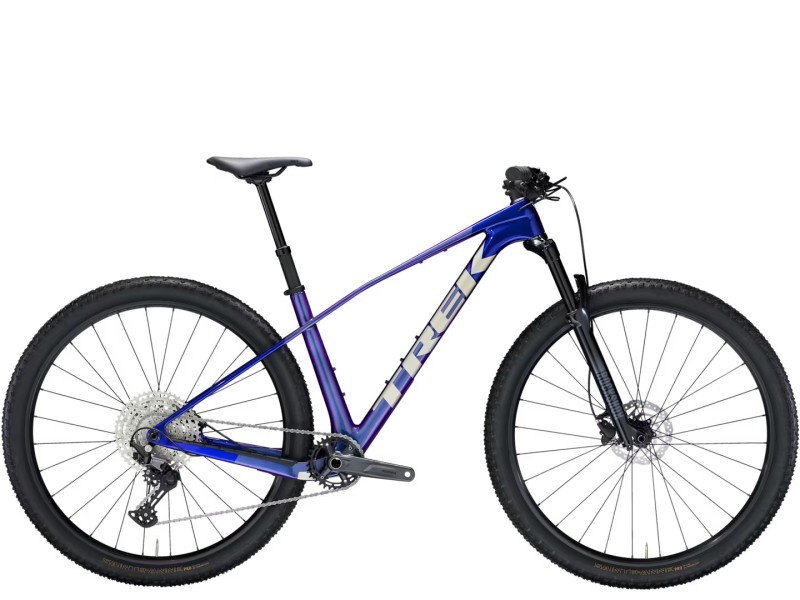

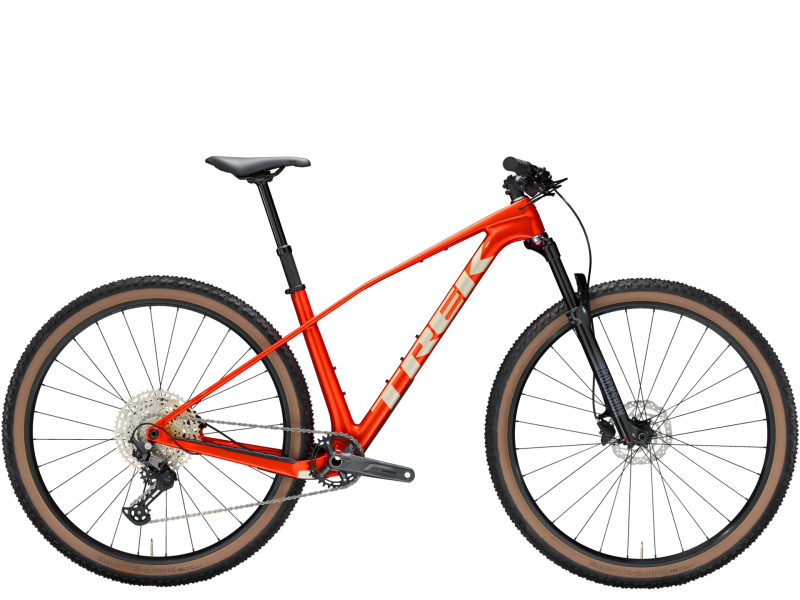

TREK Procaliber 9.5 Gen 3 2025
The Procaliber 9.5 Gen 3 is a race-ready carbon hardtail ready to rip up singletrack climbs. Featuring IsoBow vibration damping technology to take the edge off, it features an aggressive XC geometry that’s agile and efficient.
Chassis OCLV Mountain Carbon, IsoSpeed, tapered head tube, internal cable routing, balanced post-mount brake, Boost148
Fork RockShox Judy GOLD, Solo Air spring, TurnKey lockout, tapered steerer, 42mm offset, Boost110, 15mm Maxle Stealth, 120mm travel
Max. compatible fork travel 120mm
Wheels
Front hub Shimano TC500 alloy thru axle, centerlock, 110x15mm
Rear hub Shimano TC500 alloy thru axle, centerlock, 148x12mm
Circle Bontrager Kovee, double chamber, Tubeless Ready, 28 hole, 23mm width, Presta valve
*Tire Size: S, M, ML, L, XL
Bontrager Sainte-Anne Pro XR, Tubeless Ready, Dual Compound, Aramid Bead, 60tpi, 29x2.40"
Size: S, M, ML, L, XL
Bontrager Sainte-Anne Pro XR, Tubeless Ready, Dual Compound, Aramid Bead, 60tpi, 29x2.20"
Max. tire size Frame: 29x2.40", Fork: See manufacturer's data
Transmission
Command Shimano Deore M6100, 12 speed
Rear derailleur Shimano Deore M6100, long cage
*Cushion Size: S, M, ML
Shimano MT512, 32 teeth, 55mm chainline, 170mm
Size: L, XL
Shimano MT512, 32 teeth, 55mm chainline, 175mm
Bottom bracket Shimano MT500, 92mm, PressFit
Box Shimano Deore M6100, 10-51, 12 speed
Chain Shimano Deore M6100, 12 speed
Max. crown size 1x: 38T
Components
Saddle Verse Short, Cr-Mo rails, 145mm width
*Seatpost Size: S
Bontrager Line dropper seatpost, 100mm travel, MaxFlow, internal routing, 31.6mm, length 310mm
Size: M, ML, L
Bontrager Line dropper seatpost, 150mm travel, MaxFlow, internal routing, 31.6mm, length 410mm
Size: XL
Bontrager Line dropper seatpost, 170mm travel, MaxFlow, internal routing, 31.6mm, 450mm length
*Handlebar Size: S
Bontrager Comp, alloy, 31.8mm, 5mm rise, 720mm width
Size: M, ML, L, XL
Bontrager Rhythm Comp, alloy, 31.8mm, 15mm rise, 750mm width
Knobs Bontrager XR Trail Comp, nylon block
*Handlebar stem Size: S
Bontrager Comp, 31.8mm, Blendr compatible, 7 degrees, 50mm length
Size: M, ML
Bontrager Elite, 31.8mm, Blendr compatible, 7 degrees, 60mm length
Size: L
Bontrager Elite, 31.8mm, Blendr compatible, 7 degrees, 70mm length
Size: XL
Bontrager Elite, 31.8mm, Blendr compatible, 7 degrees, 80mm length
Steering series FSA IS-2, 1-1/8" top, 1.5" bottom
Brake Shimano MT200 hydraulic disc
*Brake rotor Size: S, M, ML, L, XL
Shimano RT10, centerlock, 160mm
Size: L, XL
Shimano RT10, centerlock, 180mm
Disk size Max. brake rotor size - Frame: 180mm, Fork: See fork manufacturer
