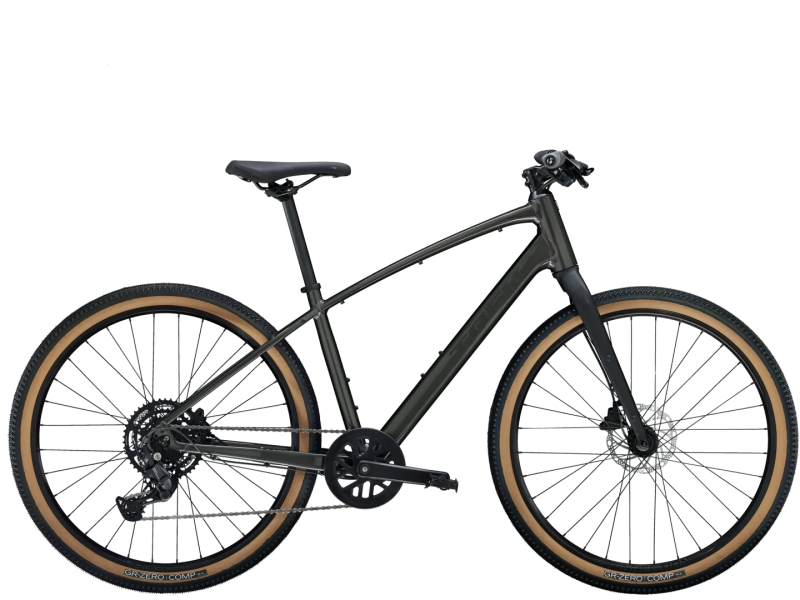

TREK Dual Sport 2 Gen 5

Chassis Alpha Gold Aluminum, internal cable routing, rack and fender mount compatibility, post-mount disc, kickstand mount. 135x5mm QR

Fork Dual Sport alloy, internal brake routing, fender mounts, rack mounts, ThruSkew 5mm QR

Wheels

Front hub Formula DC-20, alloy, 6 bolt, 5x100mm QR

Front lock 139x5mm bolted

Rear hub Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR

Rear lock QR 152x5mm

Circle Bontrager Connection, dual chamber, 32 holes, 20mm width, Schrader valve

Rays 14g stainless steel, black

Tire Bontrager GR0 Comp, stiff bead, 60tpi, 650x50mm

Max. tire size 27.5x2.00"

Transmission

Command Shimano U4000, 9 speed

Rear derailleur Shimano CUE U4000

Garnish ProWheel Pro alloy, steel crown 40 teeth narrow-wide, length 170mm

Bottom bracket Sealed cartridge, 68mm

Chain Shimano LG500

Pedal Wellgo nylon body, alloy bottle cage

Max. crown size 1x: 42T, 2x/3x: 48T

Components

Saddle Bontrager Sport

Seatpost Bontrager alloy, 27.2mm, 12mm offset, 330mm length

*Handlebar Size: XS, S

Bontrager Alloy, 31.8mm, 15mm rise, 600mm width

Size: M

Bontrager Alloy, 31.8mm, 15mm rise, 660mm width

Size: L, XL

Bontrager Alloy, 31.8mm, 15mm rise, 690mm width

Knobs Bontrager Satellite

*Handlebar stem Size: XS, S

Bontrager Comp, 31.8mm, Blendr compatible, 7 degrees, 70mm length

Size: M, L

Bontrager Comp, 31.8mm, Blendr compatible, 7 degrees, 80mm length

Size: XL

Bontrager Comp, 31.8mm, Blendr compatible, 7 degrees, 90mm length

Brake rotor Tektro Wave, 6 bolt, 160mm

Brake set Tektro HD-R280 hydraulic disc, 160mm rotor

Disk size Max brake rotor size: 160mm front and rear

Weight

Weight M - 12.78kg/28.18lbs
