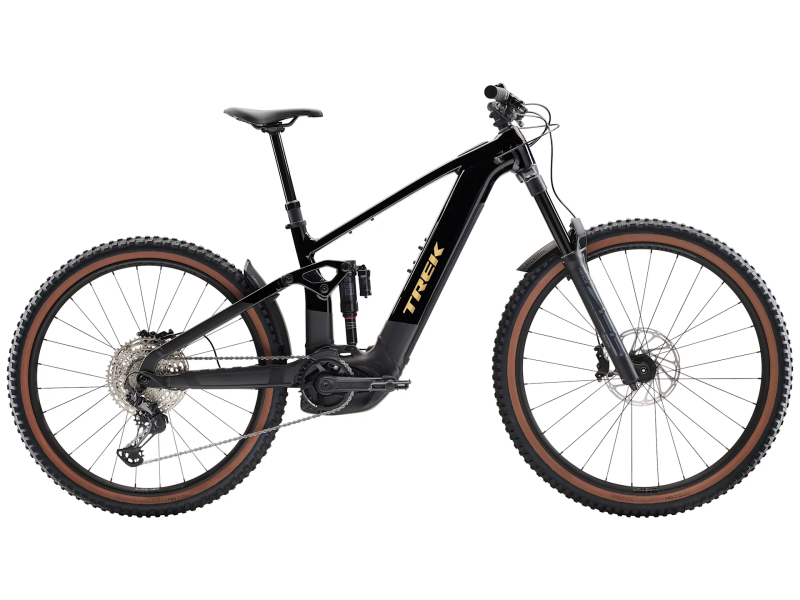

TREK Rail+ 8 Gen 5

€5,890.00
Tax included

Rail+ 8 is an alloy enduro e-bike that packs everything you need to tackle big adventures. It features a full-power Bosch Performance CX drive system to tackle challenging trails and big climbs, while its generous battery offers plenty of range. 160mm of front and rear travel make Rail+ the ideal solution for rough and uneven terrain. Adjustable geometry lets you customize the bike to suit your riding needs.


Last items in stock

Chassis Alpha Platinum Aluminum, removable integrated battery (RIB 2.0), tapered head tube, guided internal routing, Motor Armor, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage ratio, 34.9mm seat tube, ABP, UDH, Boost148, 12mm thru axle, 160mm travel

Fork RockShox ZEB Select, DebonAir spring, Charger RC damper, tapered steerer, 44mm offset, Boost110, Maxle Stealth, 160mm travel

Suspension RockShox Super Deluxe Select+ RT, 205mm x 65mm

Max. compatible fork travel 180mm

Wheels

*Front wheel Size: S

Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 27.5"

Size: M, L, XL

Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29"

Rear wheel Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6 bolts, Boost148, 12mm thru axle, 27.5"

Rear lock Bontrager Switch thru axle, removable lever

*Tire Size: S, M, L, XL

Bontrager Brevard Pro XR, Tubeless Ready, Dual Compound, Aramid Bead, 60tpi, 27.5x2. 50"

Size: M, L, XL

Bontrager Brevard Pro XR, Tubeless Ready, Dual Compound, Aramid Bead, 60tpi, 29x2.50"

Pneumatic component Bontrager TLR Sealant, 6oz

Paranipple Bontrager TLR

Max. tire size Frame: 27.5x2.60", Fork: See manufacturer's data

Electronic system

Drums Bosch PowerTube 800Wh, intelligent system

Charger Bosch standard 4A, 230V, intelligent system

Controller Bosch BRC3100 system controller, intelligent system

Motor Bosch Performance Line CX, max assistance 20mph/32km/h (max assistance 25km/h in EU and APAC)

Transmission

Command Shimano SLX M7100, 12 speed

Rear derailleur Shimano XT M8100, long cage

Box Shimano Deore M6100, 10-51, 12 speed

Chain Shimano SLX M7100, 12 speed

Max. crown size 1x: 36T

Components

Saddle Bontrager Verse P3, steel rails

*Seatpost Size: S

Bontrager Line dropper seatpost, 150mm travel, MaxFlow, internal routing, 34.9mm, length 410mm

Size: M

Bontrager Line dropper seatpost, 170mm travel, MaxFlow, internal routing, 34.9mm, length 450mm

Size: L, XL

Bontrager Line dropper seatpost, 200mm travel, MaxFlow, internal routing, 34.9mm, length 515mm

Handlebar Bontrager Line, alloy, 35mm, 27.5mm rise, 780mm width

Knobs Bontrager XR Trail Comp, nylon block

Handlebar stem Bontrager Elite, 35mm, 0 degrees, 45mm length

Brake SRAM DB 8 4-piston hydraulic disc

Brake rotor SRAM CenterLine, 6-bolt, roll edge, 200mm

Disk size Max. brake rotor size - Frame: 220mm, Fork: See fork manufacturer

Accessories

Mudguards Trek 27.5” Custom Mudguard
