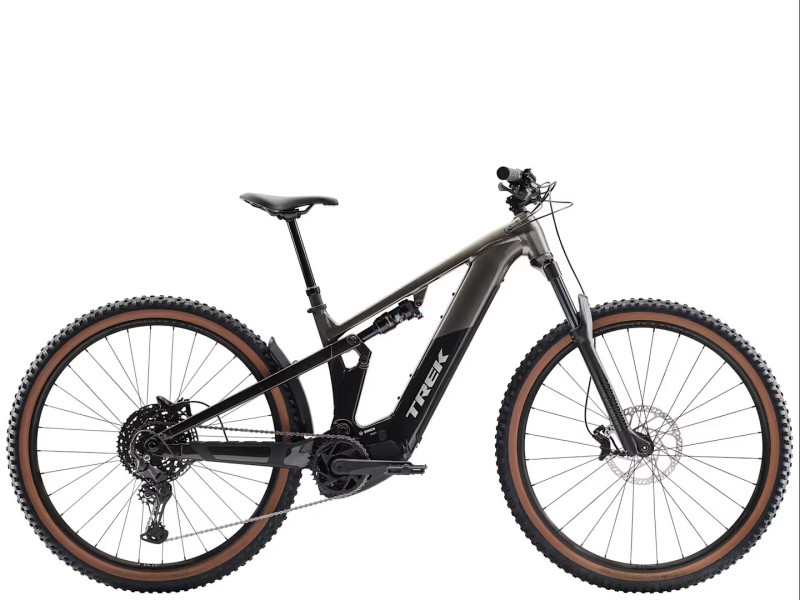

The Powerfly+ FS 4 is a high-powered, full-suspension electric mountain bike ready to tackle the toughest alpine adventures. The Alpha Platinum Aluminum frame pairs with a RockShox Deluxe suspension package (120mm front and rear) to soak up the bumps of the roughest trails, while the low-maintenance Shimano CUES 10-speed transmission makes shifting easy. Tektro Gemini SL 4-piston hydraulic disc brakes provide a great balance between stopping power and value.
FRAME : Alpha Platinum Aluminum, removable integrated battery (RIB 2.0), tapered head tube, guided internal cable routing, Motor Armor, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage ratio, 34.9mm seat tube, ABP, UDH, rack and fender mounts, Boost 148, 120mm travel
Fork RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 42mm offset, Boost110, 15mm Maxle Stealth, 130mm travel
Max. compatible fork travel Consult the service manuals
Wheels
Front hub Shimano TC500 alloy thru axle, centerlock, 110x15mm
Rear hub Shimano TC500 alloy thru axle, centerlock, 148x12mm
Rear lock Bontrager Switch thru axle, removable lever
*Circle Size: S, M, L, XL
Bontrager Line TLR 30, Tubeless Ready, 28 holes, Presta valve
Size: S, M, L, XL
Bontrager Line TLR 30, Tubeless Ready, 32 holes, Presta valve
Rays 14g stainless steel, black
*Tire Size: S
Bontrager Gunnison Pro XR, Tubeless Ready, rigid bead, 60tpi, 27.5x2.40"
Size: M, L, XL
Bontrager Gunnison Pro XR, Tubeless Ready, dual compound, aramid bead, 60tpi, 29x2.40"
Pneumatic component Bontrager TLR Sealant, 6oz
Paranipple Bontrager TLR
Max. tire size Frame: 29x2.50" (S: 27.5x2.50"), Fork: consult manufacturer
Electronic system
Drums Bosch PowerTube 600Wh, intelligent system
Charger Bosch standard 2A, 230V, intelligent system
Computer Bosch Purion 200
Motor Bosch Performance Line CX, max assistance 20mph/32km/h (max assistance 25km/h in EU and APAC)
Transmission
Command Shimano U6000, 10 speed
Rear derailleur Shimano CUES U6000GS
Garnish FSA Bosch CK-220, 36T chainring, 165mm length
Crown FSA, 36 teeth, steel
Box Shimano CUES LG300, LINKGLIDE, 11-48, 10-speed
Chain Shimano LG500, 9/10/11 speed
Pedal VP-536 Nylon Platform
Max. crown size 1x: 38T
Components
Saddle Bontrager Verse P3, steel rails
*Seatpost Size: S
Bontrager Line dropper seatpost, 100mm travel, MaxFlow, internal routing, 31.6mm, length 310mm
Size: M, L, XL
Bontrager Line dropper seatpost, 170mm travel, MaxFlow, internal routing, 31.6mm, length 450mm
Handlebar Bontrager Comp, alloy, 31.8mm, 40mm rise, 780mm width
Knobs Bontrager XR Trail Comp, nylon block
Handlebar stem Bontrager Comp, 31.8mm, Blendr compatible, 7 degrees, 50mm length
Steering series FSA IS-2, 1-1/8" top, 1.5" bottom
Brake Tektro Gemini SL 4-piston hydraulic disc
Brake rotor Tektro, centerlock, 203mm
Disk size Max brake rotor size - Frame: 220mm, min 180mm, Fork: consult fork manufacturer
Accessories
Mudguards Trek 27.5” Custom Mudguard
Weight
Weight M – 24.58kg (with TLR sealant, without tube)
