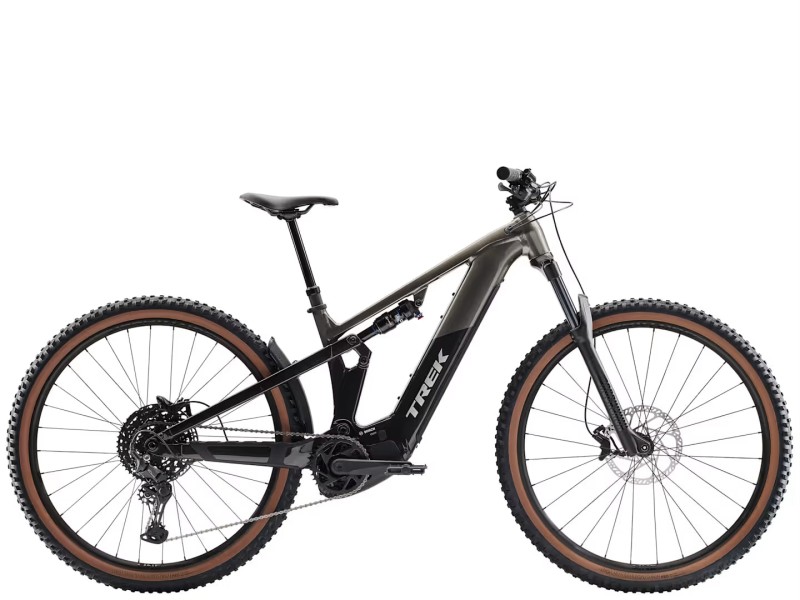

TREK Powerfly+ FS 4 Gen 4 800Wh

Chassis

Alpha Platinum Aluminum, removable integrated battery (RIB 2.0), tapered head tube, guided internal routing, Motor Armor, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage ratio, 34.9mm seat tube, ABP, UDH, rack and fender mounts, Boost 148, 120mm travel

Fork

RockShox Recon Silver, Solo Air spring, Motion Control damper, lockout, tapered steerer, 42mm offset, Boost110, Maxle Stealth, fender mounts, 130mm travel

Suspension

RockShox Deluxe Select R, 210x50mm

Wheels

Front hub

Shimano TC500 alloy thru axle, centerlock, 110x15mm

Rear hub

Shimano TC500 alloy thru axle, centerlock, 148x12mm

Rear lock

Bontrager Switch thru axle, removable lever

*Circle

Size: S, M, L, XL

Bontrager Line TLR 30, Tubeless Ready, 28 holes, Presta valve

Size: S, M, L, XL

Bontrager Line TLR 30, Tubeless Ready, 32 holes, Presta valve

Rays

14g stainless steel, black

*Tire

Size: S

Bontrager Gunnison Pro XR, Tubeless Ready, rigid bead, 60tpi, 27.5x2.40"

Size: M, L, XL

Bontrager Gunnison Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.40"

Pneumatic component

Bontrager TLR Sealant, 6oz

Paranipple

Bontrager TLR

Max. tire size

Cadre : 29x2,5 pouces (S - 27,5x2,5 pouces) Fourche : voir le fabricant

Electronic system

Drums

Bosch PowerTube 800Wh, intelligent system

Charger

Bosch standard 2A, 230V, intelligent system

Computer

Bosch Purion 200

Motor

Bosch Performance Line CX, max. assistance 20mph/32km/h (max. assistance 25km/h in EU and APAC)

Transmission

Command

Shimano U6000, 10 speed

Rear derailleur

Shimano CUES U6000 GS

Crankset

FSA Bosch CK-220, 36T chainring, 165mm length

Crown

FSA, 36 teeth, steel

Cassette

Shimano CUES LG300, LINKGLIDE, 11-48, 10-speed

Chain

Shimano LG500, 9/10/11 speed

Pedal

VP-536 nylon platform

Max. crown size

1x: 38T

Components

Saddle

Bontrager Verse P3, steel rails

*Seatpost

Size: S

Bontrager Line dropper seatpost, 100mm travel, MaxFlow, internal routing, 31.6mm, 310mm length

Size: M, L, XL

Bontrager Line dropper seatpost, 170mm travel, MaxFlow, internal routing, 31.6mm, 450mm length

Handlebar

Bontrager Comp, alloy, 31.8mm, 40mm rise, 780mm width

*Knobs

Size: S, M, L, XL

Bontrager XR Trail Comp, nylon block

Size: S, M, L, XL

Trek Line Comp, nylon lock-on

Handlebar stem

Bontrager Comp, 31.8mm, Blendr compatible, 7-degree, 50mm length

Steering series

FSA IS-2, 1-1/8" top, 1.5" bottom

Brake

Tektro Gemini SL 4-piston hydraulic disc

Brake rotor

Tektro, centerlock, 203mm

Disk size

Max brake rotor size - Frame: 220mm, min 180mm, Fork: Consult fork manufacturer

Accessories

Mudguards

Trek 27.5” custom mudguard

Weight

Weight Limit

This bike has a maximum overall weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lbs).
