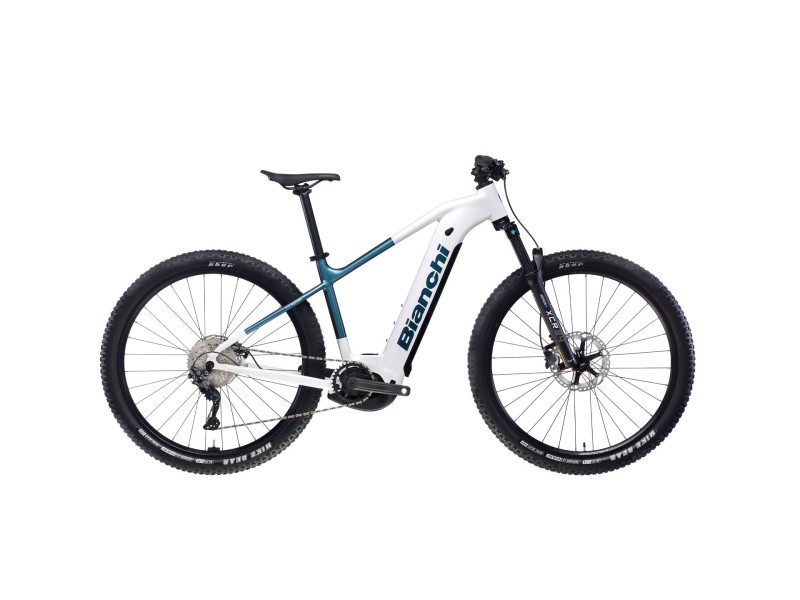

BIANCHI T-Tronik X 9.2 Deore 10Spd 600Wh

Motor Unit

Motor

Bosch Performance Line BDU3460, 75 Nm - Purion 200

Battery

Bosch Powertube 600 Wh Horizontal

Frameset

Frame

Bianchi T-Tronik X, aluminium, 12x148 mm rear thru axle, Post mount 180 disc brake type, Front travel 120 mm, Internal cable routing in steerer, 800 Wh battery compatible sizes SM-MD-LG-XL

Fork

Suntour XCR34X, Air, 120 mm travel, Steerer tube 1,5" tapered, 34 mm stanchions, 15x110 Boost axle, Rotor: minimum 180 mm, maximum 203 mm

Headset

FSA 1.5" for tapered fork steerer, Dual side internal cable routing

Drivetrain

Shifters

Shimano Deore SL-M4100, Rapidfire Plus

Rear Derailleur

Shimano Deore, RD-M4120, 10sp, Shadow design

Crankset

FSA CK-320/IS, Aluminium DieCast, Crank length: 170 mm

Chain

KMC e10S EPT, Anti-Rust

Cassette

Sunrace CSMS2, 11-42T

Brakes

Brakes

Shimano Deore BR-MT410, 2 piston, resin pad

Brake Levers

Shimano Deore BL-MT401

Rotor

FRONT: Shimano SM-RT30, 203 mm / REAR: Saccon CDM80FD, 180 mm

Wheels

Wheels

Velomann 622x30, 32 hole; Front hub: Shimano TC500 Thru axle; Rear hub: Shimano TC500 Thru axle

Tire

Obor Mike Bear, 29"x2,35", 60 TPI

Cockpit

Stem

Velomann Viper0, alloy, Diameter 28.6 mm, Barbore 31,8 mm Size: 60 mm

Handlebar

Velomann Aluminium, Rise 15 mm, Barbore 31.8 mm, Width 740 mm Size: 740 mm

Grips / Extensions

Herrmans Luna lock 130 mm

Saddle

Seatpost Clamp

Ursus Alloy, Quick Release, Diameter 34,9 mm

Seatpost

Velomann AL2014, Diameter: 31,6 mm, Seatback: 0 mm for size SM; Dropper, travel 125 mm for size MD-LG; Dropper, travel 150 mm for size XL

Saddle

Velomann Velomann Gnd Full-fit Start Up, Carbon-steel rail, 262 mm x 145 mm
