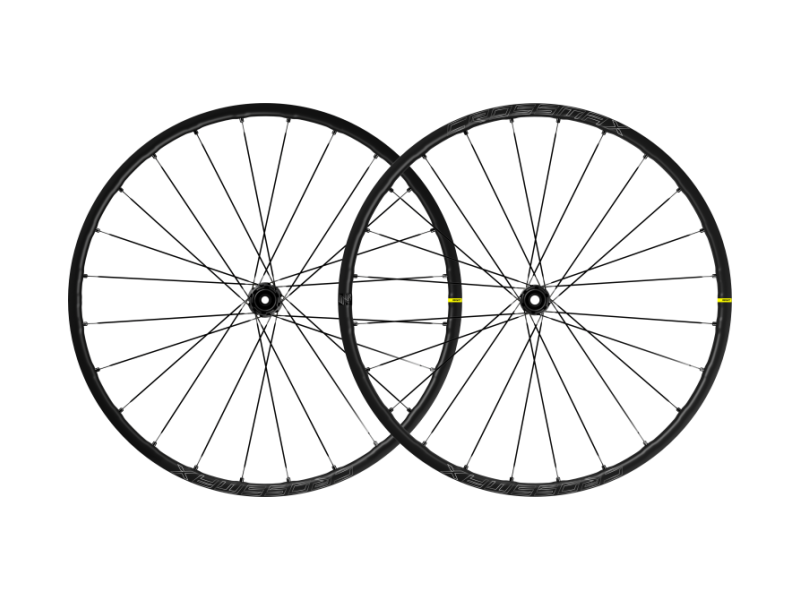

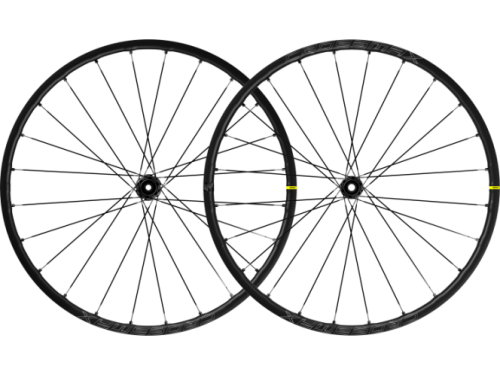

MAVIC Wheelset Crossmax Sl 29 6 Bolt Bst Xd

Hubs

Freewheel technology: Instant Drive 360

Bearing technology: QRM automatic setting - sealed cartridge

Axle size: front 15x110 / rear 12x148

Axle material: aluminum

Body material: aluminium

Body design: INFINITY

Freewheel: Shimano HG MTB / Shimano MS / Sram XD MTB

Disc standard : 6 Bolts or Center Lock®

Rims

Material: Maxtal

Tire: UST Tubeless Ready

Braking: disc

Joint: SUP welding technology

Drilling : Fore tapeless tubeless technology (front/rear 24 holes)

ETRTO size: 622x25TSS

Internal width: 25 mm

Height: 22 mm

Profile: asymmetrical and hookless

Delivered with

User guide

UST valve not mounted on wheel

2 Multifonction adjustment wrench with the rear wheel

2 replacement spokes with each wheel

Spokes

Material: steel

Lacing: crossed 2 (front and rear)

Nipples: brass, black

Screw: M7

Shape: straight, extra-flat, constricted, antirot (front and rear)

Intended use

ASTM category 3 : cross country

Maximum weight supported by the wheels: must not exceed 150 Kg (bike weight included)

Maximum tyre size: width 64mm - pressure max. 2.45Bar/36PSI

Minimum tyre size: width 30mm - pressure max. 4.05Bar/59PSI

Compatibility

Freewheel body: convertible SHIMANO HG MTB steel (kit V3790101 sold separately)

Front axle adapters: 15x110 convertible to 9x110 (kit 99694101 sold separately)

Front axle adapters: convertible to 15x31mm with Torque Cap (kit V2374401 sold separately)

Rear axle adapters: 12x148 convertible to 9x141 (kit V2510801 sold separately)
