Trek

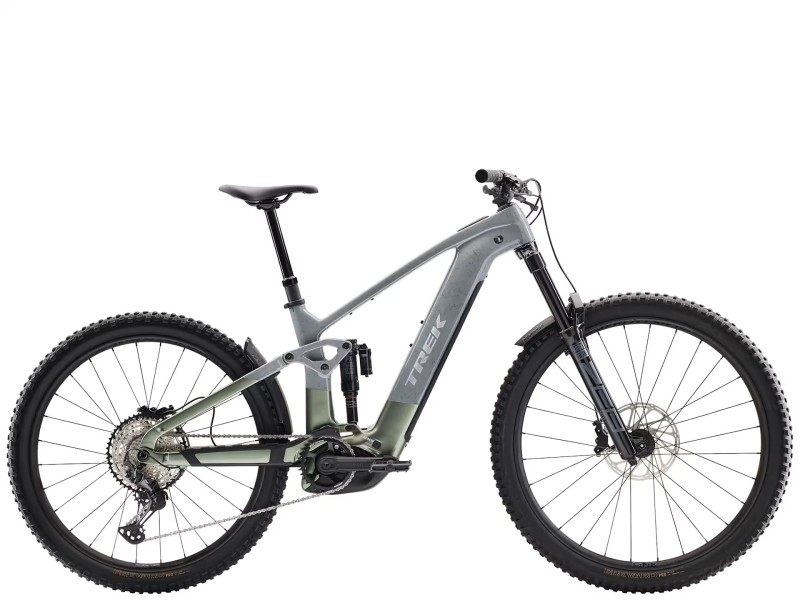

Rail+ 9.7 Gen 5

€5,699.05
€5,999.00 Save 5%
Tax included

The Rail+ 9.7 is a carbon enduro e-MTB built to take you on your most intense adventures. With 160mm of front and rear travel, the Rail+ is ready to tackle the roughest terrain. The powerful Bosch Performance CX drive system makes long climbs and fast laps a breeze. Featuring adjustable geometry that lets you customize the frame to your riding needs, it's powered by a powerful battery and a Shimano drivetrain that delivers quick, precise shifts you can rely on mile after mile.


Out-of-Stock

Chassis

OCLV Mountain Carbon main frame, removable integrated battery (RIB 2.0), tapered head tube, guided internal routing, Motor Armor, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage ratio, 34.9mm seat tube, ABP, UDH Boost148, 12mm thru axle, 160mm travel

Fork

RockShox ZEB Select, DebonAir spring, Charger RC damper, tapered steerer, 44mm offset, Boost110, Maxle Stealth, 160mm travel

Suspension

RockShox Super Deluxe Select RT, 205mm x 65mm

Wheels

*Front wheel

Size: S

Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 27.5"

Size: M, L, XL

Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29"

Rear wheel

Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6 bolts, Boost148, 12mm thru axle, 27.5"

Rear lock

Bontrager Switch thru axle, removable lever

*Tire

Size: S, M, L, XL

Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 27.5x2.50"

Size: M, L, XL

Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60tpi, 29x2.50"

Pneumatic component

Bontrager TLR Sealant, 6oz

Paranipple

Bontrager TLR

Max. tire size

Frame: 27.5x2.60", Fork: See manufacturer's specifications

Electronic system

Drums

Bosch PowerTube 800Wh, intelligent system

Charger

Bosch standard 4A, 230V, intelligent system

Transmission

Command

Shimano SLX M7100, 12 speed

Rear derailleur

Shimano XT M8100, long cage

Crank

E*thirteen E*spec Plus, length 160mm

Cassette

Shimano SLX M7100, 10-51T, 12-speed

Chain

Shimano SLX M7100, 12 speed

Pedal

VP-536 nylon platform

Max. crown size

1x: 36T

Components

Saddle

Bontrager Verse P3, Cr-Mo rails

*Seatpost

Size: S

Bontrager Line dropper seatpost, 150mm travel, MaxFlow, internal routing, 34.9mm, 410mm length

Size: M

Bontrager Line dropper seatpost, 170mm travel, MaxFlow, internal routing, 34.9mm, 450mm length

Size: L, XL

Bontrager Line dropper seatpost, 200mm travel, MaxFlow, internal routing, 34.9mm, 515mm length

Handlebar

Bontrager Line, alloy, 35mm, 27.5mm rise, 780mm width

Knobs

Bontrager XR Trail Comp, nylon block

Handlebar stem

Bontrager Elite, 35mm, 0 degrees, 45mm length

Brake

SRAM DB 8 4-piston hydraulic disc

Brake rotor

SRAM CenterLine, 6-bolt, round edge, 200mm

Disk size

Max. brake rotor size - Frame: 220mm, Fork: See fork manufacturer

Accessories

Mudguards

Trek 27.5” custom mudguard

Weight

Weight

M – 23.73kg (with TLR sealant, without tube)

Weight Limit

This model has a maximum total weight limit (combined weight of bicycle, rider and load) of 136kg.
