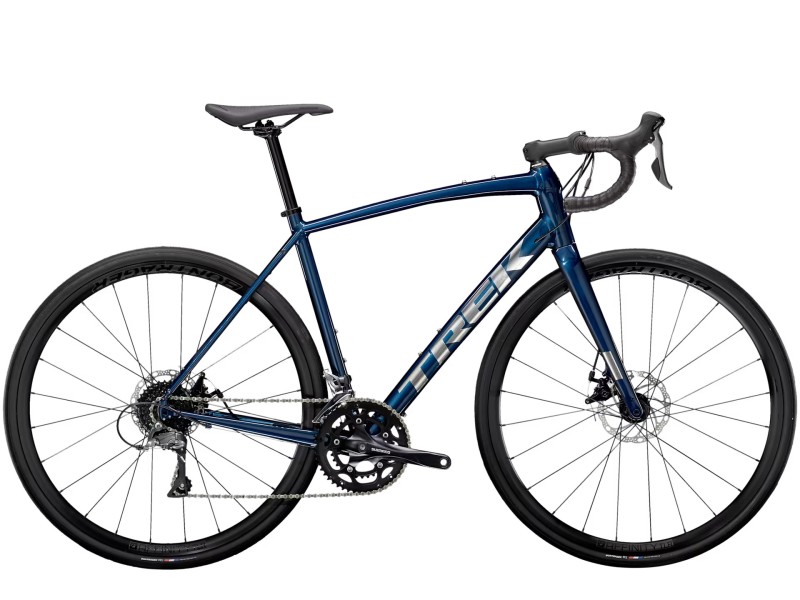

TREK Domane Al 2 Disc Gen 3

Chassis 100 Series Alpha Aluminium, tapered head tube, internal cable routing, fender mounts, DuoTrap S compatible, flat mount disc, 142x12

*Fork Size: 44, 49, 52, 54, 56, 58, 61

Domane AL carbon, tapered alloy steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle

Size: 44, 49, 52, 54, 56, 58, 61

Domane AL carbon, tapered alloy steering steerer, internal brake cable routing, mudguard mounts, flat mount disc, 12x100mm thru axle

Chassis alignment Endurance

Wheels

Front hub Formula RX-512 alloy, 6-bolt, 100x12mm thru axle

Front locking Bontrager Switch thru axle, removable lever

Rear hub Formula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142x12mm thru axle

Rear locking Bontrager Switch thru axle, removable lever

*Circle Size: 44, 49, 52, 54, 56, 58, 61

Bontrager Affinity Disc, Tubeless Ready, 24 holes, 21mm width, Presta valve

Size: 44, 49, 52, 54, 56, 58, 61

Bontrager Paradigm SL, Tubeless Ready, 24 holes, 21mm width, Presta valve

Size: 44, 49, 52, 54, 56, 58, 61

Bontrager Paradigm, Tubeless Ready, 24 holes, 21mm width, Presta valve

Rays Stainless steel 14g, black

Tire Bontrager R1 Hard-Case Lite, hard bead, 60tpi, 700x32mm

Max. dimensions of the tyre 35mm without fenders, 32mm with fenders

Transmission

*Command Size: 44, 49, 52, 54, 56, 58, 61

Shimano Claris ST-R2000-R, 8 speed, right

Size: 44, 49, 52, 54, 56, 58, 61

Shimano Claris ST-R2000-L, 8 speed, left

Front derailleur Shimano Claris R2000, 31.8mm clamp

Rear derailleur Shimano Claris R2000, medium bottle cage, 34T max sprocket

*Crankset Size: 44

Shimano RS200, 50/34 (compact), length 165mm

Size: 49, 52, 54

Shimano RS200, 50/34 (compact), length 170mm

Size: 56, 58, 61

Shimano RS200, 50/34 (compact), length 175mm

Central movement Shimano UN300, 68mm, threaded cartridge, 110mm axle

Cassette Shimano HG31, CS-HG31, 11-32, 8 speed

Chain Shimano Sora HG71, 8 speed

Max. size of the crown 1x: 42T, 2x: 50/34

Components

*Saddle Size: 44, 49, 52

Bontrager Verse Comp, steel rails, 155mm width

Size: 54, 56, 58, 61

Bontrager Verse Comp, steel rails, 145mm width

*Seatpost Size: 44, 49

Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 250mm length

Size: 52, 54, 56, 58, 61

Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 330mm length

*Handlebar Size: 44, 49

Bontrager Comp VR- S, alloy, 31.8mm, reach 81mm, drop 118mm, width 38cm

Size: 52

Bontrager Comp VR- S, alloy, 31.8mm, reach 81mm, drop 118mm, width 40cm

Size: 54, 56

Bontrager Comp VR- C, alloy, 31.8mm, reach 100mm, drop 124mm, width 42cm

Size: 58, 61

Bontrager Comp VR- C, alloy, 31.8mm, reach 100mm, drop 124mm, width 44cm

Handlebar tape Bontrager Supertack Perf Tape

*Handlebar stem Size: 44

Bontrager Elite, 31.8mm, Blendr compatible, 7 degrees, 70mm length

Size: 49

Bontrager Elite, 31.8mm, Blendr compatible, 7 degrees, 80mm length

Size: 52, 54

Bontrager Elite, 31.8mm, Blendr compatible, 7 degrees, 90mm length

Size: 56, 58

Bontrager Elite, 31.8mm, Blendr compatible, 7 degrees, 100mm length

Size: 61

Bontrager Elite, 31.8mm, Blendr compatible, 7 degrees, 110mm length

Headset FSA Integrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom

Brake Tektro C550 mechanical disc brake, double piston, flat mount, 160mm rotor

Disk size Max brake rotor size: 160mm front & rear
