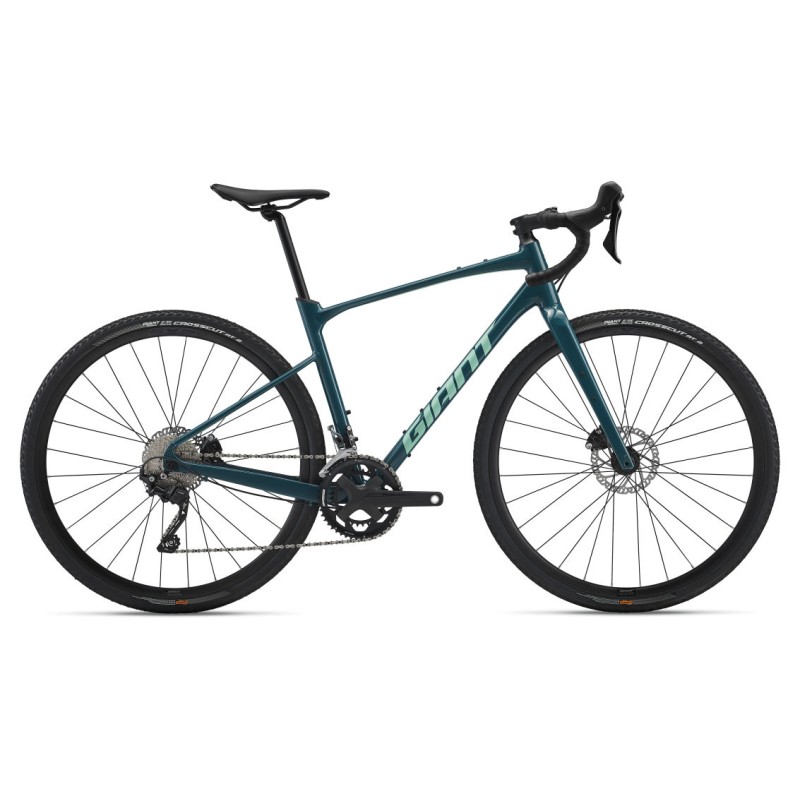

The all-new Revolt features a lightweight ALUXX aluminum frame with a revised gravel geometry that provides greater stability with a longer reach and a lower bottom bracket. A flip chip on the rear dropout adjusts wheelbase and tire clearance, and you can choose the included D-Fuse seatpost for maximum compliance or upgrade to a round 30.9mm or dropper post. The frame is designed for disc brakes and accommodates larger tires up to 53mm.
Frame sizesS, M, ML, L, XL
Colors)Grenadine, Deep Lake
FrameAluxX frame, flip chip dropout, 12x142 mm
ForkAdvanced full carbon fork, OD1 steerer, 12x100 mm
mute-
HandlebarsGIANT Contact XR D-Fuse
HandlesGIANT Cork
StemGIANT Contact
Seat postGIANT D-Fuse, compatible with 30.9mm supports
saddleGIANT Approach
Pedals-
Shift leverShimano GRX RX-400, 2-speed
front derailleurShimano Tiagra
Rear derailleurShimano GRX RX-400, 10-speed
BrakesShimano BR-RX400 HRD, 160mm
Brake leverShimano GRX RX-400 HRD
cassetteShimano Tiagra CS-HG500, 11-34T
ChainKMC X10
CranksetFSA Omega Adventure, 48/32T chainrings
Internal storageFSA Mega EXO
rimsGIANT S-X2 Disc, tubeless ready
Hubs (v/h)GIANT S-X2 Disc
spokesGIANT S-X2 Disc
TiresGIANT CrossCut AT2, 700x38c, Tubeless Ready, 30 TPI Delivery tubeless
Accessories (partly installed)Tubeless kit (sealant, valves, tire levers, valve core tool, instruction manual)
Luggage carrierCompatible with GIANT Rack-It Metro (Lite)
Max. payload (kg)150
Max. tire widthshort: 45mm; long: 53mm
Weight (kg)10.36 (ML)
