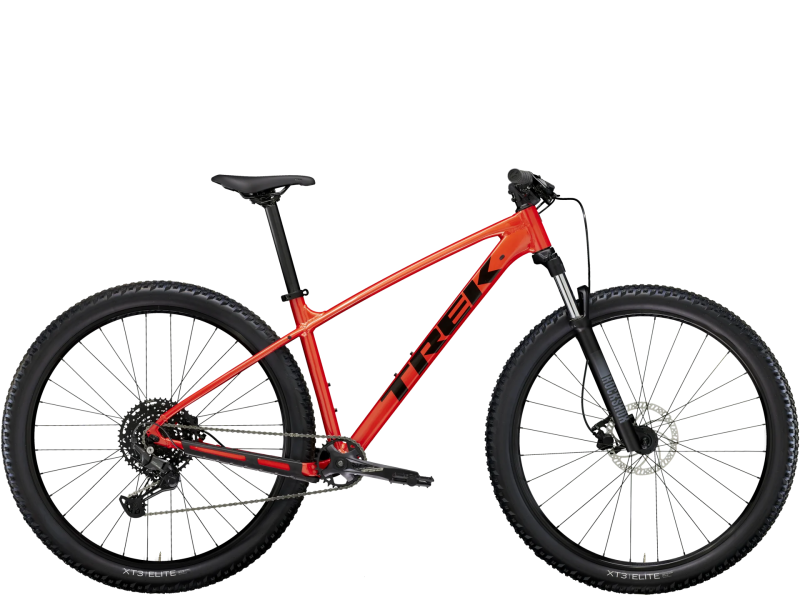

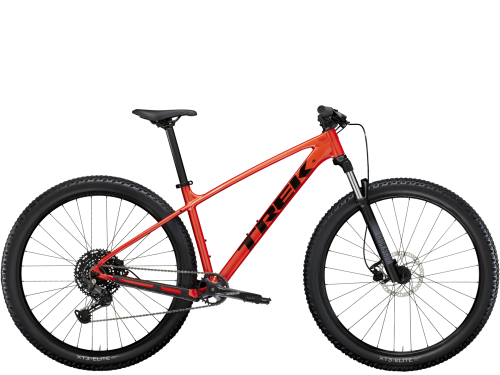

TREK Marlin 6 Gen 3

Chassis Size: XXS, XS

Alpha Silver Aluminum, curved top tube, internal cable routing for rear derailleur and dropper post, rack and kickstand mounts, ThruSkew 135x5mm

Size: S, M, ML, L, XL, XXL

Alpha Silver Aluminum, internal cable routing for rear derailleur and dropper post, rack and kickstand mounts, 135x5mm ThruSkew

*Fork Size: XXS

RockShox Judy, coil spring, preload, TurnKey lockout, 42mm offset for 27.5" wheel, 100mm QR, 80mm travel

Size: XS, S

RockShox Judy, coil spring, preload, TurnKey lockout, 42mm offset for 27.5" wheel, 100mm QR, 100mm travel

Size: M, ML, L, XL, XXL

RockShox Judy, coil spring, preload, TurnKey lockout, 46mm offset for 29" wheel, 100mm QR, 100mm travel

Max. compatible fork travel 120mm, XXS: 80mm

Wheels

Front hub Formula DC-20, alloy, 6-bolt, 100mm ThruSkew

*Rear hub Size: XXS, XS, S

Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR

Size: M, ML, L, XL, XXL

Formula DC-22, Alloy, 6-Bolt, Shimano 8/9/10 Freehub, 135x5mm QR

Rear lock QR 173x5mm

Circle Bontrager Kovee, double chamber, Tubeless Ready, 28 hole, 23mm width, Presta valve

*Tire Size: XXS

Bontrager XT3 Elite, Tubeless Ready, Inner Strength casing, stiff bead, 60tpi, 26x2.35"

Size: XS , S

Maxxis Ardent Race, tubeless ready, EXO carcass, folding bead, 60tpi, 27.5x2.35"

Size: XS , S

Maxxis Ikon, Tubeless Ready, EXO casing, folding bead, 60tpi, 27.5x2.35"

Size: M , ML , L , XL , XXL

Maxxis Ardent Race, tubeless ready, EXO casing, folding bead, 60tpi, 29x2.35"

Size: M, ML, L, XL, XXL

Maxxis Ikon, Tubeless Ready, EXO casing, folding bead, 60tpi, 29x2.35"

Max. tire size Frame: 29x2.40" (XXS: 26x2.40", XS & S: 27.5x2.40"), Fork: See manufacturer

Transmission

Command Shimano U6000, 10 speed

Rear derailleur Shimano CUES U6000GS

*Cushion Size: XXS, XS

FSA Alpha Drive, 30 teeth, length 160mm

Size: S, M, ML

FSA Alpha Drive, 30 teeth, length 170mm

Size: L, XL, XXL

FSA Alpha Drive, 30 teeth, length 175mm

Bottom bracket FSA, 73mm, threaded cartridge, 122.5mm spindle

Box Shimano CUES LG300, LINKGLIDE, 11-48, 10-speed

Chain Shimano LG500

Pedal VP-536 Nylon Platform

Max. crown size 1x: 34T, 2x: 36/22

Components

Saddle Bontrager Verse Short, stainless steel rails

*Seatpost Size: XXS

Bontrager Alloy, 31.6mm, 12mm offset, 300mm length

Size: XS, S, M

Bontrager alloy, 31.6mm, 12mm offset, 330mm length

Size: ML, L, XL, XXL

Bontrager alloy, 31.6mm, 12mm offset, 400mm length

*Handlebar Size: XXS, XS

Bontrager Alloy, 31.8mm, 5mm rise, 690mm width

Size: S

Bontrager Alloy, 31.8mm, 15mm rise, 720mm width

Size: M, ML, L, XL, XXL

Bontrager Alloy, 31.8mm, 15mm rise, 750mm width

Knobs Bontrager XR Trail Comp, nylon block

*Handlebar stem Size: XXS, XS, S

Bontrager Comp, 31.8mm, 7 degrees, 35mm length

Size: M, ML, L

Bontrager Comp, 31.8mm, Blendr compatible, 7 degrees, 50mm length

Size: XL

Bontrager Comp, 31.8mm, Blendr compatible, 7 degrees, 60mm length

Size: XXL

Bontrager Comp, 31.8mm, Blendr compatible, 7 degrees, 70mm length

Steering series Semi-integrated, 1-1/8"

Brake rotor Tektro, 6 bolt, 160mm

*Brake set Size: XXS , XS , S

Tektro HD-M276 Hydraulic disc, short reach

Size: XXS, XS, S

Tektro HD-M276 hydraulic disc, short reach

Size: M, ML, L, XL, XXL

Tektro HD-M275 hydraulic disc

Disk size Max Brake Rotor Size - Frame: 180mm (XXS: 160mm), Fork: See fork manufacturer

Weight

Weight M - 14.50 kg / 31.97 lbs (With inner tubes)
