Trek

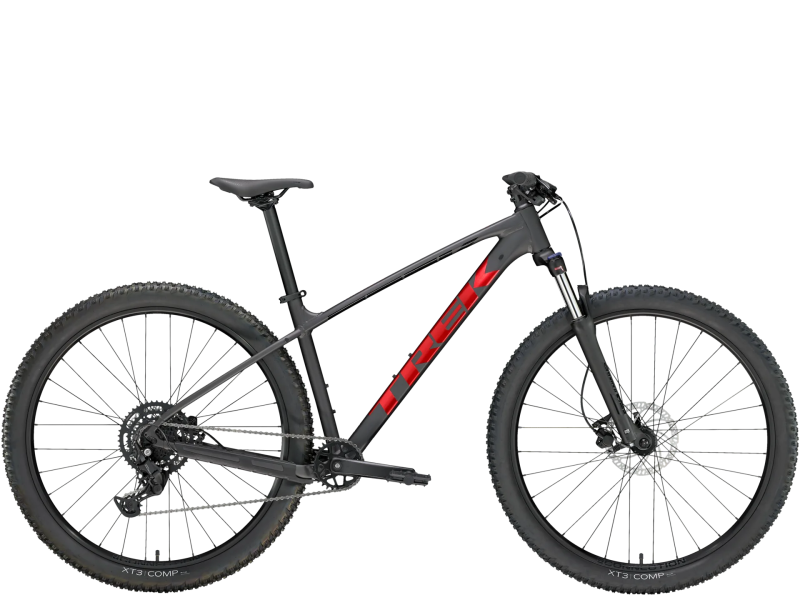

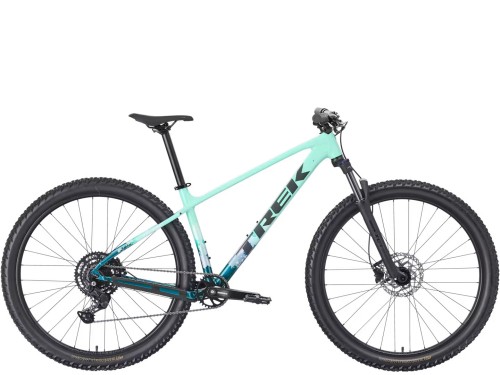

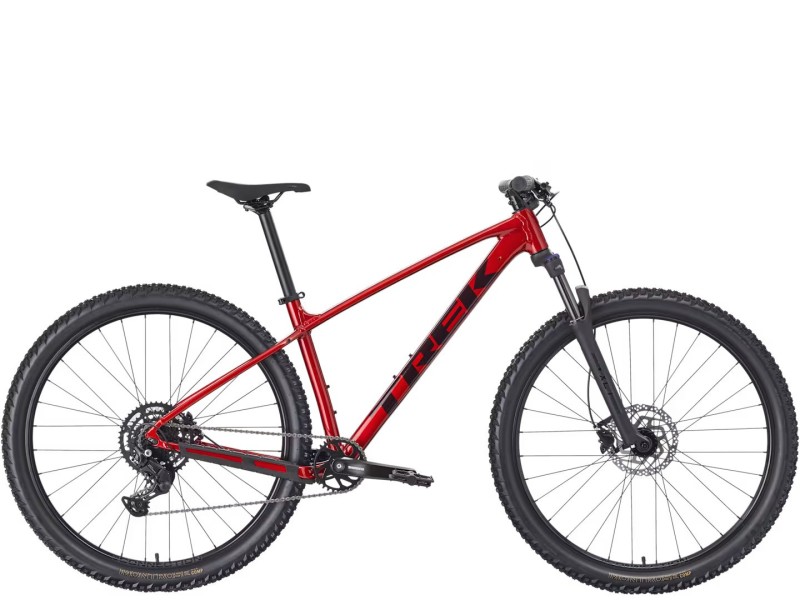

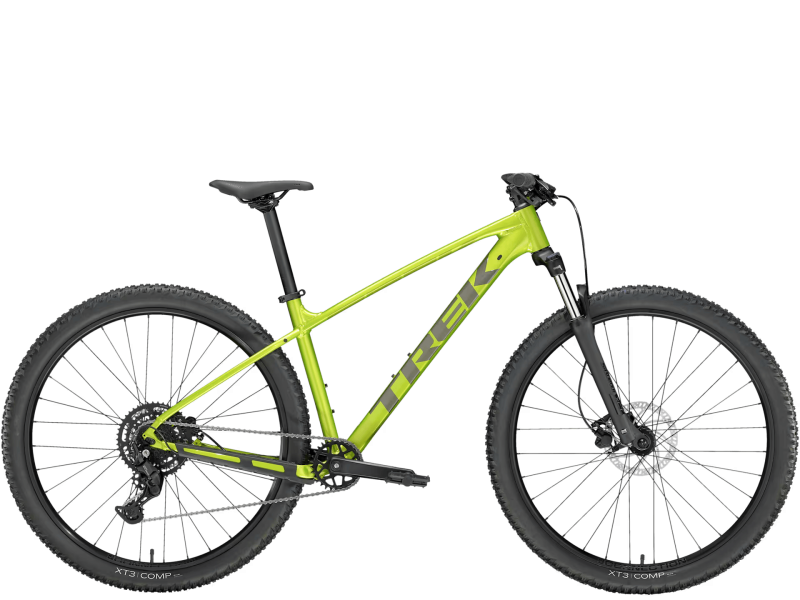

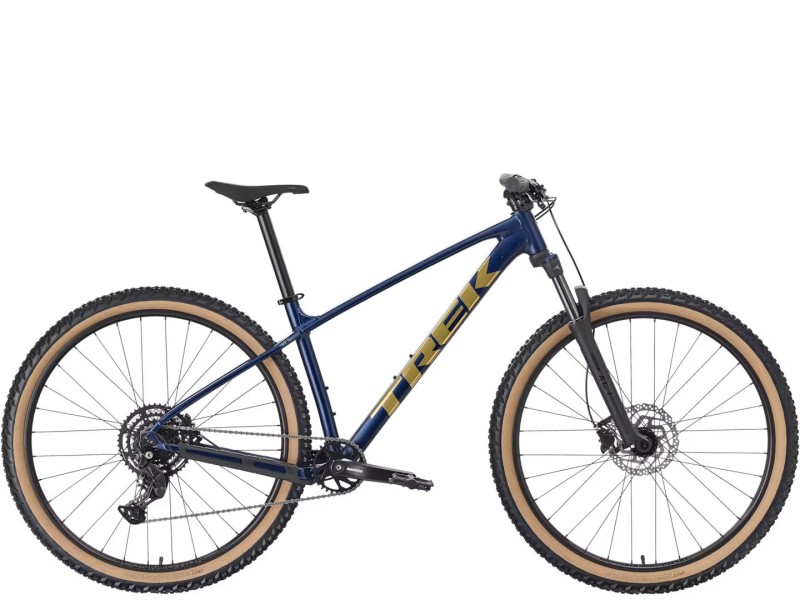

TREK Marlin 5 Gen 3
The Marlin 5 is a trail-ready everyday bike that’s equally at home on and off-road. It features a trail-ready frame with a suspension fork, 9-speed Shimano CUES gearing, and rack and kickstand attachment points. That makes it the perfect choice for those looking for a commuting bike that’s as comfortable, stable, and rugged as a true mountain bike.
Chassis Size: XXS, XS
Alpha Silver Aluminum, curved top tube, internal cable routing for rear derailleur and dropper post, rack and kickstand mounts, ThruSkew 135x5mm
Size: S, M, ML, L, XL, XXL
Alpha Silver Aluminum, internal cable routing for rear derailleur and dropper post, rack and kickstand mounts, 135x5mm ThruSkew
*Fork Size: XXS
SR Suntour XCM 30, coil spring, lockout, preload, 100mm QR, 100mm travel, 26" wheel
Size: XS
SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42mm offset for 27.5" wheel, 80mm QR, 80mm travel
Size: S
SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42mm offset for 27.5" wheel, 100mm QR, 100mm travel
Size: M, ML, L, XL, XXL
SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 46mm offset for 29" wheel, 100mm QR, 100mm travel
Max. compatible fork travel 120mm, XXS: 80mm
Wheels
Front hub Formula DC-20, alloy, 6 bolt, 5x100mm QR
Rear hub Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR
Rear lock QR 173x5mm
Circle Bontrager Connection, dual chamber, 32 holes, 20mm width, Schrader valve
Rays 14g stainless steel, black
*Tire Size: XXS
Bontrager XT3 Comp, stiff bead, 30tpi, 26x2.35"
Size: XS, S
Bontrager XT3 Comp, stiff bead, 30tpi, 27.5x2.40"
Size: M, ML, L, XL, XXL
Bontrager XT3 Comp, stiff bead, 30tpi, 29x2.40"
Max. tire size Frame: 29x2.40" (XXS: 26x2.40", XS & S: 27.5x2.40"), Fork: See manufacturer
Transmission
Command Shimano U4000, 9 speed
Rear derailleur Shimano CUE U4000
*Cushion Size: XXS , XS
Prowheel C10Y-NW, 30T steel chainring, 160mm length
Size: S, M, ML
Prowheel C10Y-NW, 30T steel chainring, 170mm length
Size: L, XL, XXL
Prowheel C10Y-NW, 30T steel chainring, length 175mm
Bottom bracket VP BC73, 73mm, threaded cartridge
Box Shimano LINKGLIDE LG300, 11-46, 9 speed
Chain Shimano LG500
Pedal VP-536 Nylon Platform
Max. crown size 1x: See FAQ, 2x: 36T, 3x: 42T
Components
*Seatpost Size: XXS
Bontrager Alloy, 31.6mm, 12mm offset, 300mm length
Size: XS, S, M
Bontrager alloy, 31.6mm, 12mm offset, 330mm length
Size: ML, L, XL, XXL
Bontrager Alloy, 31.6mm, 12mm offset, 400mm length
*Handlebar Size: XXS, XS
Bontrager Alloy, 31.8mm, 5mm rise, 690mm width
Size: S
Bontrager Alloy, 31.8mm, 15mm rise, 720mm width
Size: M, ML, L, XL, XXL
Bontrager alloy, 31.8mm, 15mm rise, 750mm width
Knobs Bontrager XR Trail Comp, nylon block
*Handlebar stem Size: XXS, XS, S
Bontrager Comp, 31.8mm, 7 degrees, 35mm length
Size: M, ML, L
Bontrager Comp, 31.8mm, Blendr compatible, 7 degrees, 50mm length
Size: XL
Bontrager Comp, 31.8mm, Blendr compatible, 7 degrees, 60mm length
Size: XXL
Bontrager Comp, 31.8mm, Blendr compatible, 7 degrees, 70mm length
Steering series Semi-integrated, 1-1/8"
Brake rotor Tektro, 6 bolt, 160mm
*Brake set Size: XXS , XS , S
Tektro HD-M276 Hydraulic disc, short reach
Size: M, ML, L, XL, XXL
Tektro HD-M275 hydraulic disc
Disk size Max Brake Rotor Size - Frame: 180mm (XXS: 160mm), Fork: See fork manufacturer
