Trek

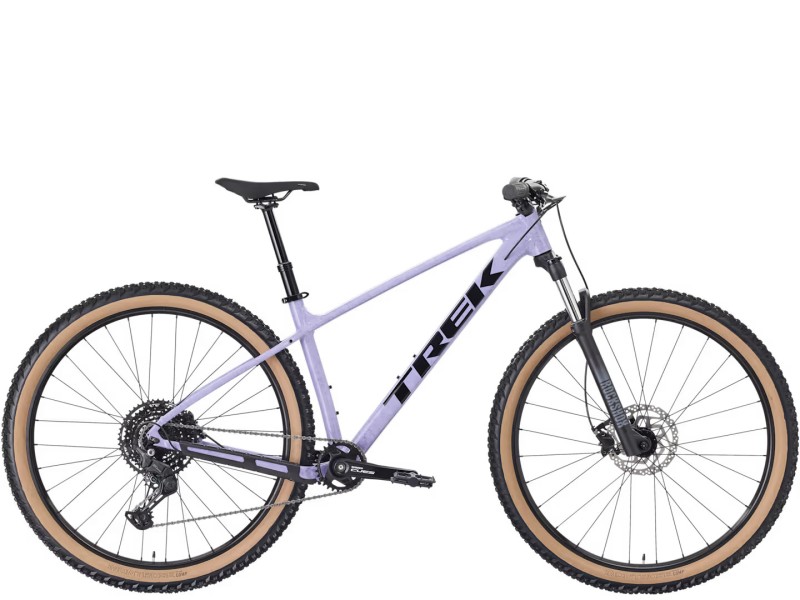

TREK Marlin 6 Gen 3 Dropper Version
€969.00
Tax included
The Marlin 6 is the perfect bike for improving your trail skills. The updated, slacker frame geometry makes descending easier, while the front suspension smooths out rough trails. Integrated rack and kickstand attachment points make it easy to add accessories to this versatile bike.
Chassis
Size: XS
Alpha Silver Aluminum, curved top tube, internal cable routing for rear derailleur and dropper post, rack and kickstand mounts, ThruSkew 135x5mm
Size: S, M, ML, L, XL, XXL
Alpha Silver Aluminum, internal cable routing for rear derailleur and dropper post, rack and kickstand mounts, 135x5mm ThruSkew
*Fork
Size: XS, S
RockShox Judy, coil spring, preload, TurnKey lockout, 42mm offset for 27.5" wheel, 100mm QR, 100mm travel
Size: M, ML, L, XL, XXL
RockShox Judy, coil spring, preload, TurnKey lockout, 46mm offset for 29" wheel, 100mm QR, 100mm travel
Wheels
Front hub
Formula DC-20, alloy, 6-bolt, 100mm
*Rear hub
Size: XS, S
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR
Size: M, ML, L, XL, XXL
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR
Rear lock
QR 173x5mm
*Circle
Size: XS, S, M, ML, L, XL, XXL
Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23mm width, Presta valve
Size: M, ML, L, XL, XXL
Bontrager Kovee, double-wall, Tubeless Ready, 32-hole, 23mm width, Presta valve
*Tire
Size: XS, S
Maxxis Ikon, Tubeless Ready, EXO casing, folding bead, 60tpi, 27.5x2.35"
Size: M, ML, L, XL, XXL
Maxxis Rekon Race, Tubeless Ready, EXO casing, folding bead, 60tpi, 29x2.35"
Paranipple
Bontrager TLR
Transmission
Command
Shimano U6000, 10 speed
Rear derailleur
Shimano CUES U6000 GS
*Crankset
Size: XS, S, M, ML
Shimano U4000, 30-tooth chainring, 170mm length
Size: L, XL, XXL
Shimano U4000, 30-tooth chainring, 175mm length
Bottom bracket
Shimano, 73mm, threaded cartridge, 122.5mm axle
Cassette
Shimano CUES LG300, LINKGLIDE, 11-48, 10-speed
Chain
Shimano LG500
Pedal
VP-536 nylon platform
Components
Saddle
Bontrager Verse Short, stainless steel rails
*Seatpost
Size: XS, S
TranzX JD-YSI34, 100mm travel, internal cable routing, 31.6mm, 350mm length
Size: M
TranzX JD-YSI34, 125mm travel, internal cable routing, 31.6mm, 405mm length
Size: ML, L, XL
TranzX JD-YSI34, 150mm travel, internal cable routing, 31.6mm, 456mm length
Size: XXL
TranzX JD-YSI34, 170mm travel, internal cable routing, 31.6mm, 500mm length
*Handlebar
Size: XS
Bontrager Alloy, 31.8mm, 5mm rise, 690mm width
Size: S
Bontrager Alloy, 31.8mm, 15mm rise, 720mm width
Size: M, ML, L, XL, XXL
Bontrager Alloy, 31.8mm, 15mm rise, 750mm width
Knobs
Trek Line Comp, nylon lock-on
*Handlebar stem
Size: XS, S
Bontrager Comp, 31.8mm, 7-degree, 35mm length
Size: M, ML, L
Bontrager Comp, 31.8mm, Blendr compatible, 7-degree, 50mm length
Size: XL
Bontrager Comp, 31.8mm, Blendr compatible, 7-degree, 60mm length
Size: XXL
Bontrager Comp, 31.8mm, Blendr compatible, 7-degree, 70mm length
Steering series
Semi-integrated, 1-1/8"
Brake
Shimano MT200 hydraulic disc
*Brake rotor
Size: XS, S, M, ML, L, XL, XXL
Shimano RT26, 6-bolt, 160mm
Size: M, ML, L, XL, XXL
Shimano RT26, 6-bolt, 180mm
Brake set
Shimano MT200 hydraulic disc
Weight
Weight
M - 15.00 kg / 33.07 lbs
Weight Limit
This bike has a maximum overall weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lbs).
